Short Communication | Volume: 9, Issue: 2, February, 2019

A simplified system for simulation of Streptococcus mutans biofilm on healthy extracted human tooth as dental plaque model

Nadia Halib Nor Zaihana Abdul Rahman Rohazila Mohamad Hanafiah Nabihah Roslan Nurhani Jauhar

Open Access

Published:  Feb 25, 2019

DOI: 10.7324/JAPS.2019.90215
Abstract

The understanding and capability to simulate reproducible in vitro plaque model are important where this artificial plaque can be utilized as a tool in assessing the efficacy of tooth cleaning products. Previous studies were done on synthetic surfaces such as glass beads under a very strict, controlled environment. Thus, the aim of this study was to establish a simplified system to enable the formation of single species biofilm on the extracted natural tooth as plaque model. Healthy extracted natural tooth was incubated in broth mixture of Streptococcus mutans, containing 5% sucrose and stimulated saliva in a simplified system. The incubation was set at room temperature for 24, 48, and 72 hours. After 24 hours, the sticky deposit was formed on the surface of the tooth. The area of biofilm, stained with disclosing agent, expended from 19.05 ± 1.41 mm2 (24 hours) to 23.25 ± 0.35 mm2 (48 hours). However, no significant expansion of the plaque area was observed on 72 hours (23.83 ± 0.52 mm2 ). The biofilm was then observed under Infinite Focus Microscope (IFM) to measure the biofilm thickness. The preliminary attempt showed that plaque appeared as dark deposit with a certain thickness. Therefore, this simplified system is a reliable method for producing artificial plaque.


Keyword:     In vitro biofilm plaque simulation extracted tooth Streptococcus mutans.


Citation:

Halib N, Rahman NZA, Hanafiah RM, Roslan N, Jauhar N. A simplified system for simulation of Streptococcus mutans biofilm on healthy extracted human tooth as dental plaque model. J Appl Pharm Sci, 2019; 9(02):112–115.

Copyright: © The Author(s). This is an open-access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

HTML Full Text

INTRODUCTION

Human oral cavity is a complex ecological environment where microorganisms are bathed in a liquid medium such as saliva. These microorganisms have access and adhere to both hard and soft tissue surfaces; hence, facilitate the development of biofilms. Dental plaque is the film of micro-organisms found on the tooth surface embedded in a matrix of polymers of salivary and bacterial origin (Marsh, 1992). It has a heterogenous, biodiverse but organized structure that changes over time (Listgarten, 1994). The development and maturation of dental plaque as a biofilm has profound implication in the etiology and progression of dental caries and periodontal diseases (Filoche et al., 2010).

The understanding towards dental plaque formation is important in the development of an effective cleaning aid in order to help reduce or slowing down the formation process. However, in vivo experimental studies of natural dental plaque in both humans and animals are severely restricted and involved complicated ethical issues, such as induction of gingivitis by simple plaque accumulation and problems with access and sampling (Sissons, 1997). Therefore, in vitro model systems which are more controllable have been recently developed and used to explain and predict its behavior. In those studies, the biofilm was simulated as artificial dental plaque onto surfaces of various materials such as hydroxyapatite beads, glass beads, orthodontic wire, and inert surface like Teflon in the constant depth film fermenter (Appelbaum et al., 1979; Jacob, 2006; Matsumoto et al., 2004; WI et al., 2013). While others simulate dental plaque in situ using bovine dentin disks worn by human subjects (Zaura-Arite et al., 2001).

A more complex model was also developed to mimic the constant saliva or gingival crevicular fluid flow conditions. Blanc et al. (2014) had used bioreactor to grow the oral bacteria under flow and shear conditions and found that their system was highly reproducible for multispecies oral biofilm formation. The system had become a useful tool for evaluating the activity of three antiplaque agents (Blanc et al., 2014).

The simulation of artificial dental plaque on extracted natural tooth was first done, by Jordan and Keyes (1966) which utilized streptococci isolated from rats and hamster to form the biofilm. In our study, we aimed to establish a simplified system of single species, manipulating Streptococcus mutans to form stable and reproducible biofilm onto healthy extracted human tooth which later used as a model to evaluate the efficacy of our in-house production of tooth cleaning aid. We expected that the formation of biofilm was possible in a very basic condition with minimum control over the set environment as in our simplified system.


MATERIALS AND METHODS

Tooth preparation

In this study, no patient or human volunteer was involved. The extracted teeth were provided by Orthodontics Clinic, Faculty of Dentistry, Universiti Sains Islam Malaysia (USIM). The teeth were indicated for extraction because of crowding in patient required to wear braces. However, the procedure of handling human samples in this study had been approved by the Faculty of Dentistry, USIM ethical committee. Healthy extracted natural premolar teeth free from plaque, calculus, caries, and restoration were selected. Teeth were then mounted in gypsum, covering from the apex of the root to the cementoenamel line, as shown in Figure 1.

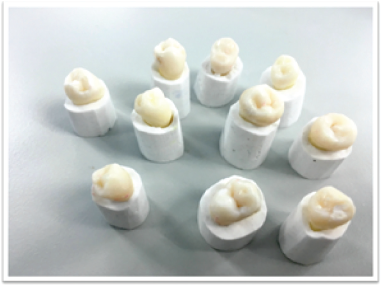

Figure 1. Teeth mounted in gypsum covering from the apex of the root to the cementoenamel line.

[Click here to view]

Bacterial strains

Streptococcus mutans (ATCC25175) was grown on nutrient agar at pH 7 and incubated at 37°C under anaerobic condition (10% H2, 10% CO2, and 80% N2). The bacterial colony was then inoculated into 10 ml of Brain Heart Infusion broth (source) and incubated at 37°C for 72 hours. The bacterial concentration was measured using spectrophotometer at 540 nm.

Media

Sucrose 5% was used for plaque simulation. To make 5% sucrose, 0.5 ml of 100% sucrose stock was added into 10 ml brain heart infusion (BHI) broth containing Streprococcus mutans (BHI-Sm).

Saliva collection

Saliva samples were collected from one healthy volunteer using the spit-out method after chewing 1 g of paraffin wax for 5 minutes (Navazesh, 1993). The collection of saliva was performed 1 hour after breakfast between 09:30 and 11:30 in the morning. All experimental and saliva collection protocols were approved by the Faculty of Dentistry, USIM ethical committee.

Biofilm simulation procedure

The mounted tooth was first placed in a universal bottle containing a mixture of 10 ml BHI broth containing Streptococcus mutans at 108 CFU/ml and 0.5 ml of 100% sucrose. Another universal bottle was filled with 3 ml of saliva. Both universal bottles (containing saliva and BHI-S. mutan media) were connected to each other with 5 mm silicon tube. The middle part of the tube was attached to a peristaltic pump to create circulation and placed in arrangement set-up, as shown in Figure 2. The pump was set at 32 rpm and circulation was continuously allowed at room temperature for 24, 48, and 72 hours.

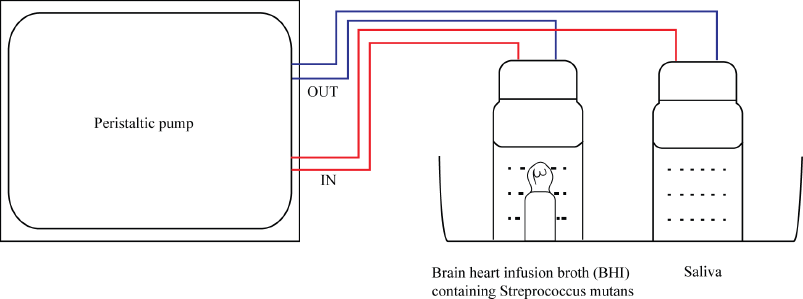

Figure 2. Set-up for a simplified plaque simulation system.

[Click here to view]

To evaluate the biofilm formation, the mounted tooth was rinsed and later stained using erythrosine as the staining agent. The tooth was soaked in the dye and again rinsed off to remove the excessive stain with normal saline before the area covered with biofilm was measured. The thickness of the plaque was analyzed using infinite focus microscope (IFM).


RESULT AND DISCUSSION

After 24 hours of incubation, the sticky deposit was observed on the tooth surface. The sticky deposit appeared red when stained with erythrosine; hence, confirms the presence of dental biofilm (Fig. 3). The area covered with a plaque was measured three times and recorded in mean value (Table 1). The measurement of biofilm formation was repeated again after 48- and 72-hours incubation. It was found that the biofilm area was 19.05 ± 1.41 mm2 for 24 hours of incubations. And the area expended to 23.25 ± 0.35 mm2 after 48 hours of incubation.

In this experiment, it was observed that our simplified system was capable of producing biofilm onto the surface of the healthy extracted tooth. The 5% sucrose in our system also granted the expansion of biofilm formation up to 48 hours. However, further incubation to 72 hours did not exhibit significant progress of growth (23.83 ± 0.52 mm2) which suggested that extension of incubation time requires additional of sucrose source.

The replacement of saliva with buffer in this system did not favor the formation of biofilm. This is because saliva is required for the formation of an acellular organic pellicle on the exposed tooth surface (Rosan and Lamont, 2000). This organic coating (salivary pellicle) is derived from adsorption of mucinous proteins from the saliva (Hicks et al., 2004). This finding was in agreement with the previous study where Jordan and Keyes (1966) observed if one of two factors (saliva and sucrose) was replaced, no visible biofilm was formed. They found that synthetic saliva was required for plaque production but the various salt components were not and glucose, fructose, galactose, sorbitol, lactose, or a mixture of glucose and fructose could not be substituted for sucrose (Jordan and Keyes, 1966).

The formation of biofilm was found to be reproducible in this system. Although it has basic control of the environment (fixed parameters in temperature and amount of glucose and bacteria concentration), the influence of external factors was still within the limit where variables have less influence in the formation of biofilm. This will aid in acquiring reliable data in the evaluation of tooth cleaning product efficacy (for example, the mechanical cleansing agent such as toothbrushing).

The biofilm was later observed under IFM. The initial idea was to evaluate the topology of the biofilm and subsequently estimated the thickness of biofilm formation. However, the first attempt only allowed us to visualize plaque as a dark deposit, as shown in Figure 4. The thickness cannot be properly measured as the plaque was dried out during the procedure. Thus, a proper method of sample preparation is required to be established in the near future.

Table 1. Area of biofilm formation on the tooth surface.

[Click here to view]

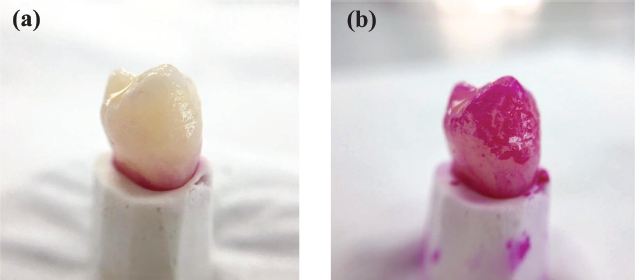

Figure 3. Photographs showing biofilm formation on the natural extracted tooth (a) before and (b) after erythrosine staining.

[Click here to view]

Figure 4. IFM micrographs showing (a) clean tooth surface, (b) biofilm formation on the extracted natural tooth surface.

[Click here to view]


CONCLUSION

In this study, the simplified system was able to simulate a reproducible artificial plaque. The system managed to produce artificial dental plaque by the formation of biofilm on the surface of the natural tooth. The area of biofilm covering the tooth surface expended as the incubation time increased from 24 to 48 hours. This system is easy to set and use as it only requires simple apparatus and simulation run at room temperature. The artificial plaque produced in this simplified system will benefit as it is further utilized as a tool to evaluate tooth cleaning product efficacy.


ACKNOWLEDGMENTS

The author would like to acknowledge the Ministry of Higher Education (MOHE), Malaysia for the Fundamental Research Grant Scheme (FRGS/1/2014/SG06/USIM/02/1) and Universiti Sains Islam Malaysia Research Grant Scheme (PPP/USG-0216/FPG/30/16416) that has funded this study.


REFERENCES

Appelbaum B, Golub E, Holt SC, Rosan B. In vitro studies of dental plaque formation: adsorption of oral streptococci to hydroxyaptite. Infect Immun, 1979; 25:717–28.

Blanc V, Isabal S, Sanchez MC, Llama-Palacios A, Herrera D, Sanz M, León R. Characterization and application of a flow system for in vitro multispecies oral biofilm formation. J Periodontal Res, 2014; 49(3):323–32.

Filoche S, Wong L, Sissons CH. Oral biofilms: emerging concepts in microbial ecology. J Dent Res, 2010; 89:8–18. CrossRef

Hicks J, Garcia-Godoy F, Flaitz C. Biological factors in dental caries: role of saliva and dental plaque in the dynamic process of demineralization and remineralization (part 1). J Clin Pediatr Dent, 2004; 28:47–52. CrossRef

Jacob M. Biofilms, a new approach to the microbiology of dental plaque. Odontology, 2006; 94:1–9. CrossRef

Jordan H, Keyes P. In vitro methods for the study of plaque formation and carious lesions. Arch Oral Biol, 1966; 11:793–801. CrossRef

Listgarten MA. The structure of dental plaque. Periodontology, 2000, 1994; 5:52–65. CrossRef

Marsh P. Microbiological aspects of the chemical control of plaque and gingivitis. J Dent Res, 1992; 71:1431–8. CrossRef

Matsumoto M, Tsuji M, Okuda J, Sasaki H, Nakano K, Osawa K, Shimura S, Ooshima T. Inhibitory effects of cacao bean husk extract on plaque formation in vitro and in vivo. Eur J Oral Sci, 2004; 112:249–52. CrossRef

Navazesh M. Methods for collecting saliva. Ann NY Acad Sci, 1993; 694:72–7. CrossRef

Rosan B, Lamont RJ. Dental plaque formation. Microbes Infect, 2000; 2:1599–607. CrossRef

Sissons C. Artificial dental plaque biofilm model systems. Adv Dental Res, 1997; 11:110–26. CrossRef

WI WNH, Fathilah AR, Rahim ZH. Plant extracts of Psidium guajava, Mangifera and Mentha sp. inhibit the growth of the population of single-species oral biofilm. Altern Integr Med, 2013; 2(1):1–6.

Zaura-Arite E, Van Marle J, Ten Cate JM. Confocal microscopy study of undisturbed and chlorhexidine-treated dental biofilm. J Dent Res, 2001; 80:1436–40. CrossRef

Reference

Appelbaum B, Golub E, Holt S & Rosan B. In vitro studies of dental plaque formation: adsorption of oral streptococci to hydroxyaptite. Infection and Immunity, 1979,25: 717-728.

Filoche S, Wong L & Sissons C. Oral biofilms: emerging concepts in microbial ecology. Journal of Dental Research, 2010, 89: 8-18. https://doi.org/10.1177/0022034509351812

Hicks J, Garcia-Godoy F & Flaitz C. Biological factors in dental caries: role of saliva and dental plaque in the dynamic process of demineralization and remineralization (part 1). Journal of Clinical Pediatric Dentistry, 2004,28: 47-52. https://doi.org/10.17796/ jcpd.28.1.yg6m443046k50u20

Jacob M. Biofilms, a new approach to the microbiology of dental plaque. Odontology,2006,94: 1-9. https://doi.org/10.1007/ s10266-006-0063-3

Jordan H & Keyes P. In vitro methods for the study of plaque formation and carious lesions. Archives of oral biology,1966, 11: 793-801. https://doi.org/10.1016/ 0003-9969(66)90005-7

Listgarten MA. The structure of dental plaque. Periodontology 2000,1994, 5: 52-65. https://doi.org/10.1111/ j.1600-0757.1994.tb00018.x

Marsh P. Microbiological aspects of the chemical control of plaque and gingivitis. Journal of Dental Research,1992, 71: 1431-1438. https://doi.org/10.1177/ 00220345920710071501

Matsumoto M, Tsuji M, Okuda J, Sasaki H, Nakano K, Osawa K, Shimura S & Ooshima T. Inhibitory effects of cacao bean husk extract on plaque formation in vitro and in vivo. European journal of oral sciences,2004, 112: 249-252. https://doi.org/10.1111/ j.1600-0722.2004.00134.x

Navazesh M. Methods for collecting saliva. Annals of the New York Academy of Sciences,1993, 694: 72-77. https://doi.org/10.1111/ j.1749-6632.1993.tb18343.x

Rosan B & Lamont RJ. Dental plaque formation. Microbes and infection,2000, 2: 1599-1607. https://doi.org/10.1016/ S1286-4579(00)01316-2

Sissons C. Artificial dental plaque biofilm model systems. Advances in dental research,1997, 11: 110-126. https://doi.org/10.1177/ 08959374970110010201

Wan Nordini Hasnor WI, Fathilah A & Rahim Z. Plant Extracts of Psidium guajava, Mangifera and Mentha sp. inhibit the Growth of the Population of Single-species Oral Biofilm. Alternative & Integrative Medicine,2013,2(1): 1-6.

Zaura-Arite E, Van Marle J & Ten Cate J. Confocal microscopy study of undisturbed and chlorhexidine-treated dental biofilm. Journal of Dental Research,2001,80: 1436-1440. https://doi.org/10.1177/ 00220345010800051001
