Bioanalytical HPLC method of Piper betle L. for quantifying phenolic compound, water-soluble vitamin, and essential oil in five different solvent extracts

Plant material

Piper betle L. leaves were purchased from local market, Prachinburi area, East Thailand. Fresh biomass of leafy material plant was pooled, rinsed, and kept overnight at 4°C. Residue content of Piper betle L. leaves was made by after steam-distillation using Clevenger's apparatus to collect an essential oil (separated report) and the crude content of Piper betle L. leaves was as untreated steam-distillation. The crude and residue content were air-dried using oven set 40°C for 2 days, made a powder, and kept in sealed plastic until the extraction time.

Extraction

Five grams of crude or residue content were extracted with 20-ml solvents on the basis of their polarity. Water, methanol, ethanol, chloroform, and hexane were used in this section. The extraction were run with Soxhlet apparatus for 3–4 hours. The extract was filtered and kept. Remaining solid residue on the filter paper was reextracted for three times with volume of fresh solvent, Soxhlet, and filtered. All the filtrates were pooled and combined based on the solvent followed by evaporation using Rotavapor (Buchi R300). The extracts were finally filtered through 0.45-μm PVDF syringe paper and the volume was made up to 10 ml using the same solvent and stored at ‒20°C.

Chemical and reagent

The HPLC-grade solvents were purchased from Anapure (Bangkok, Thailand) for acetic acid, Avantor (USA) for ethanol and methanol, Labscan (Bangkok, Thailand) for hexane and chloroform, and Duksan (Gyunggido, Korea) for Acetonitrile. Standard chemicals, phenolic acids (gallic, caffeic, syringic, p-coumaric, ferulic, and sinapic acid), flavonoids (catechin, rutin, myricetin, quercetin, apigenin, and kaempferol), and essential oil (eugenol) were purchased from Sigma Chemical Co. (St. Louis, MO). However, ascorbic acid was purchased from Carlo erba (Strada Rivoltana, France). All water used in all the preparations was of the double distillated water grade (Millipore, Illkirch-Graffenstaden, France).

Standard chemical preparation and HPLC equipment

A standard stock solution (1 mg/ml) was made by diluted 1 mg selecting standard with 0.5-ml HPLC-grade methanol followed by sonication for 15 minutes in ice and vortex. The standard stock solution was then adjusted to 1 ml with the mobile phase solution (1:9, HPLC-grade acetonitrile:1% acetic acid).

HPLC analyses were performed with HPLC Agilent Technologies 1260 Infinity (USA and Canada) with four solvent delivery system quaternary pumps (61311B), including a diode array detector (DAD 61315D) with 10-mm flow cell, an automatic sample injection valve equipped with a 100 loop and Agilent OpenLAB CDS 1.8.1 system manager as data processor. The separation was achieved by a reversed-phase Zorbax SB-C18 column (3.5 μm particle size, i.d. 4.6 mm × 250 mm).

Chromatographic condition

A method for chromatographic analysis followed to Seal (2016) with modification. The gradient elution, flow rate, and temperature setting are presented in Table 1. Injected volume was maintained at 20 μl. A photo diode array UV detector run wavelength at 272 nm according to absorption maxima of analyzed compounds was set to detect HPLC chromatogram with analysis total time per sample 65 minutes. Identification of each compound was decided with identical condition by its retention time inviting spiked standard and the reference mode was turned on critically for identification of integration data analysis. Quantification of each injected sample was completely success by measuring the integrated area. As a result, content number of samples was calculated based on calibration curve by plotting peak area, respective standard sample was also considered. The data were subjected in quadruplicate.

Table 1. Chromatographic design for gradient eluent, flow rate, and temperature. [Click here to view]

Method validation

The analytical method was validated according to The International Council for Harmonisation of Technical Requirements for Pharmaceuticals for Human Use guideline, namely, the effectiveness, the limit of detection (LOD), the limit of quantitation (LOQ), the linearity, the precision, and the accuracy, as shown in Table 2. The effectiveness of HPLC method was confirmed by recognizing peak of standard solvent randomly after it was diluted with the diverse solvent. Acetonitrile and 1% acetic acid resolved well in this study; however, other solvents, such as methanol and formic acid, might be considered. Theoretically, LOD and LOQ were calculated from the calibration curve according to the following equations:

where σ is the standard deviation of y-axis interception values and S is the angular coefficient.

To obtain linearity, a calibration curve was created with a stock standard solution (1 μg/ml) diluted to six concentrations (5, 10, 20, 30, 40, and 60 μg/ml) randomly injected in triplicate. The calibration curve was accepted to get R² > 0.99 indicating the significantly abundant linearity measurement. Precision evaluation was run repeatability and intermediate precision using the degree of proximity expressing as % relative standard deviation (RSD) of retention time and peak area. Two diluted concentration was selected (20 and 40 μg/ml) by injecting in 10 times to evaluate % RSD determination. The accuracy was evaluated based on the recovery percentage of crude and residue extract spiking to 20 and 40 μg/ml. Results of accuracy were calculated in terms of recovery (%R) according to the following equation:

where a is the amount found, b is the amount contained, and c is the amount added.

Optimization of chromatographic condition

The UV-Vis spectrum of all the standard compounds showed successfully in wavelength 272 nm. This wavelength provided a clearest separation of single peak area toward to the retention time. Regardless of time observation, running at 43 minutes onward was found slightly sensitive identification. All the peak area is depicted in Figure 2.

Figure 1. Piper betle Linn. (Family: Piperaceae ). [Click here to view]

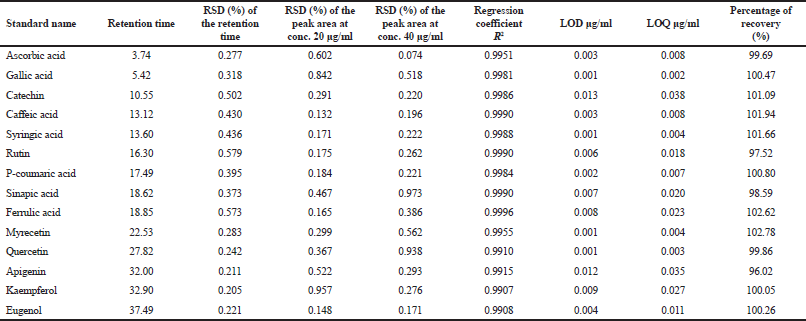

Table 2. Retention time and parameters of calibration curve, precision, and repeatability, LOD, LOQ, and percent recovery study of standard ascorbic acid, phenolic acids, flavonoids, and eugenol for HPLC method validation using wavelength at 272 nm. [Click here to view]

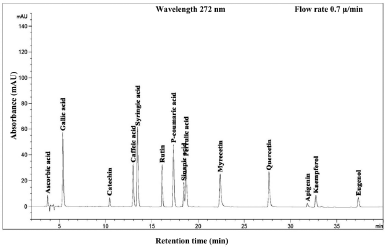

Figure 2. Standard HPLC chromatogram of phenolic compound, water-soluble vitamin, and essential oil. [Click here to view]

Figure 3. HPLC chromatogram of Piper betle L crude content in water extract. [Click here to view]

Figure 4. HPLC chromatogram of Piper betle L crude content in methanol extract. [Click here to view]

Validation method of phenolic compound, water-soluble vitamin, and essential oil

The response of validation method, including linearity, precision, and accuracy is presented in Table 2. A compulsory-mixed standard chemical was found over R² > 0.9907 indicating all variables standing on linearity. According to the precision, RSD in retention time and spiking peak area at two selectively standards, 20 and 40 μg/ml were lesser 1% exhibiting repeatability running a rigid way. An automatically injection valve set maintaining evaporation off solvent and mixing genuinely vial were acceptable strategies for further recommending investigations. Furthermore, the LOD and LOQ were calculated as mean 0.005 and 0.015 μg/ml, respectively. The decreased values of these limits revealed high sensitivity of the method. In this study, the separation detector was set a strictly shorter than previous study (Syahidah et al., 2017), In addition, the percentage of recovery was in the range 96–102. A breakthrough in number was particularly interesting in this stage, considering the method formula hinged on linearity, precision, and accuracy involving meticulousness could be applicated for qualitative and quantitative analysis of phenolic compound, water-soluble vitamin, and essential oil of this study.

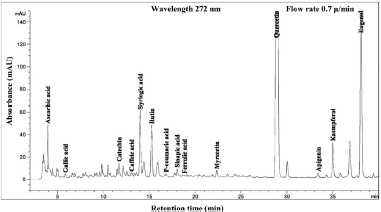

Figure 5. HPLC chromatogram of Piper betle L crude content in ethanol extract. [Click here to view]

Figure 6. HPLC chromatogram of Piper betle L crude content in chloroform extract. [Click here to view]

Figure 7. HPLC chromatogram of Piper betle L crude content in hexane extract. [Click here to view]

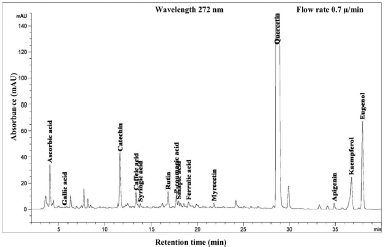

Figure 8. HPLC chromatogram of Piper betle L residue content in water extract. [Click here to view]

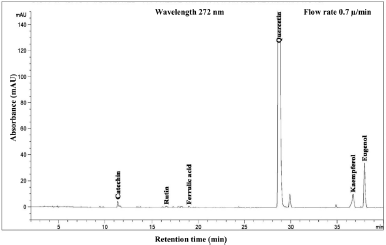

Figure 9. HPLC chromatogram of Piper betle L residue content in methanol extract.betle L residue content in methanol extract. [Click here to view]

Identifying compounds of phenolic compound, water-soluble vitamin, and essential oil

The phenolic compound, water-soluble vitamin, and essential oil chromatogram of crude content is captured in Figures 3–7 and residue content in Figures 8–12 following by water, methanol, ethanol, chloroform, and hexane, respectively. Clearly, polar solvents were easier to bond the organic compound due to uneven distribution of electron density, while non-polar solvents were opposite sentence. A relationship of O-H bonding and repeating extraction might be a hand of effecting factors stimulating compound sensitivity. As a result, flavonoid was most edible dissolved among essential oil and water-soluble vitamin (Rafiq et al., 2018). Overall, quercetin and eugenol were duo foremost in crude-residue contents of the plant under investigation.

Figure 10. HPLC chromatogram of Piper betle L residue content in ethanol extract. [Click here to view]

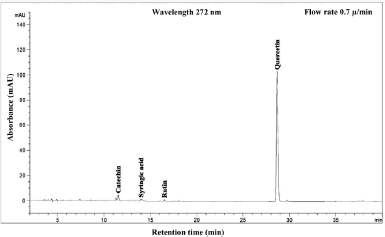

Figure 11. HPLC chromatogram of Piper betle L residue content in chloroform extract. [Click here to view]

Quantifying compounds of phenolic compound, water-soluble vitamin, and essential oil

A completely quantitative result is presented in Table 3. In this present study, the proportion of Piper betle L. chemical compounds from highest to lowest was phenolic compounds, essential oil, and water-soluble vitamin (mg/g). The most organic compound of phenolic fraction was flavonoids 67.4% and 55.3% for crude and residue content, respectively. Eugenol as essential oil representative was only slighter number at 20% and remaining percentages confirmed as ascorbic acid (water-soluble vitamin). In previous reports, the average percentage (%) or mass (mg/g) of various Piper betle L. confirmed eugenol as the most major compound (Begam et al., 2018; Prakash et al., 2010), even Syahidah et al. (2017) adjusted assessment by TLC study that Piper betle L. might have flavonoid or other phenolic compounds. The suitable method for extraction and detection probably provided a clearer peak in specifically Piper betle L. quantity (mg/g). For instance, the handy extraction method of this study promoted obtaining catechin successfully.

Literally, catechin is difficult to extract. The greatest reason because of catechin is lofty sensitivity in oxidation, light alkaline environment, and high temperature (Gadkari and Balaraman, 2015). However, catechin of Piper betle L. was successfully extracted and presented in polar and non-polar solvents using hot reflux extraction (Soxhlet apparatus), see Table 3. There were max 0.560 mg/g using chloroform in crude content and 0.869 mg/g using methanol in residue content, where these numbers were quite low toward recommendation. Catechin was rich in tea around 20–160 mg/g and bean 70–110 mg/g (Manach et al., 2004). Meanwhile, other flavonoids were successfully detected, as shown in Table 3.

Along with flavonoid, gallic acid plays role as plant defense. Gallic acid is commonly found and collected from fruits and vegetables. The gallic acid content of this study was found a lesser number in both of crude and residue Piper betle L. content <0.06 mg/g. Karamac et al. (2006) and Bayili et al. (2011) were reported content gallic acid in plant at least 0.21 mg/g to provoke the detrimental health problem to antioxidant purpose. Hence, gallic acid was predicted greater sensitive in polar dissolver.

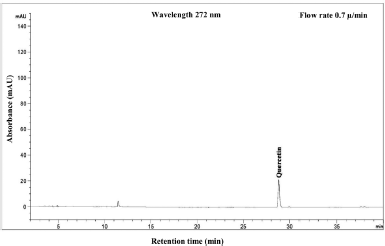

Figure 12. HPLC chromatogram of Piper betle L residue content in hexane extract. [Click here to view]

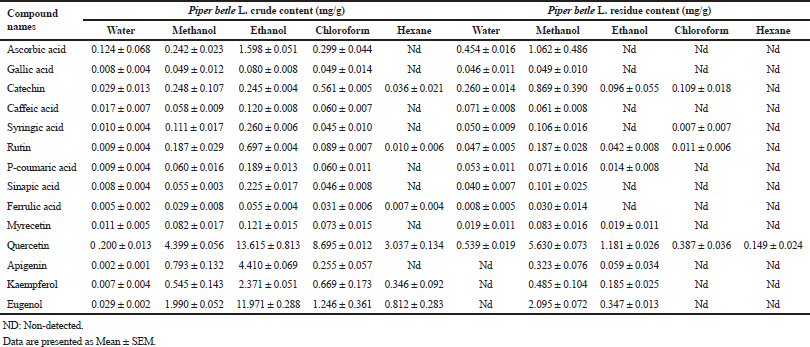

Table 3. Quantification of ascorbic acids, phenolic acids, flavonoids, and essential oils of Piper betle L. (n = 4). [Click here to view]

Syringic acid, a final form of benzoic acid derivative, is biosynthesized by β-oxidation through shikimic pathway which is interfered massively with lignin in plant cell walls (Srinivasulu et al., 2018). Rothwell et al. (2012) reported syringic acid was present in cucumber 0.006, parsnip 0.011, and rosemary 0.015 mg/g, while our study addressed the vying numbers around eight times over comparing with rosemary number in both Piper betle L. contents of using polar solvents. In spite of effective solvent, hexane was often failed exposing this organic group. In this study, other cinnamic compounds involving caffeic acid, p-coumaric acid, sinapic acid, and ferulic acid were successfully quantified, as shown in Table 3.

The most famous essential oil for expressing antimicrobial and antiseptic is eugenol (Begam et al., 2018; Syahidah et al., 2017). This phenylpropanoids is ubiquitous commonly extracted from mint leaves and spices. In present study, eugenol was successfully incited by all solvents yet ethanol promoted a mere content about 11.971 mg/g that was incredible number examined with other eugenol sources, e.g., nutmeg 0.090, basil 2.154, and clove 156.951 mg/g (Rothwell et al., 2012). As expected, residue content was lesser eugenol explaining the acceptable method for aforementioned regarding essential oil extraction from Piper betle L.

Ascorbic acid, one of water-soluble vitamins, is simplest vitamin and broadly apparent in fruit and vegetables. This essential vitamin provides functions as enzyme cofactor, hormone biosynthesis, and wound healing in plant and animal metabolism. Davey et al. (2000) reviewed the ascorbic acid played as antioxidant role solving basic oxidative stress in plant and reported Acerola (west Indian cherry) and Roseship contained the highest ascorbic acid 13 and 1 mg/g, respectively. In our study, Piper betle L. crude content using ethanol extract was found lesser 11.5% of Acerola content, which was equivalent with guava content 2 mg/g, whereas Piper betle L. residue content using methanol was only 1 mg/g. However, the non-polar solvents were repeatedly failed to provoke ascorbic acid in crude-residue contents that indicated the slightly polar unrecommending used in this way.
