INTRODUCTION
The quest for novel biomolecules with potential therapeutic value always remains a challenge as the resistance by pathogenic microorganisms is increasing day by day. In this process, infectious disease-causing microbes have become a fatal threat to human being worldwide (Handayani et al., 2015; Mehbub et al., 2014). Thus, research studies have been carried out to find new bioactive molecules from marine natural resources. The marine environment in this context has made a significant contribution as the marine organisms possess structurally unique molecules with significant biomedical potentiality (Bhatnagar and Kim, 2010; Thomas et al., 2010). The studies on the natural resources from the sea suggest that there are abundant biologically active compounds originating from marine microorganisms and particularly from sponge-associated microorganisms with potential effect against human pathogens (Bhatnagar and Kim, 2010; Kobayashi and Ishibashi, 1993; Mehbub et al., 2014; Ridley et al., 2005). With this perspective, marine sponges have been in focus in recent years due to their abundant source of biologically active secondary metabolites and their association with a wide range of microorganisms (Kumar et al., 2012; Thacker and Freeman, 2012).
The symbiotic microorganisms of sponge are highly diversified and include archaea, bacteria, cyanobacteria, green algae, red algae, diatoms, dinoflagellates and fungi and constitute even up to 40%–60% of the sponge biomass (Hentschel et al., 2001; Lee et al., 2001; Maldonado et al., 2005; Taylor et al., 2007; Zeng et al., 2013). These microbial associates remain in high densities with the sponge tissue and have a significant influence on the life cycle of its host sponge (Taylor et al., 2007; Webster and Taylor, 2012). Consequently, these microorganisms have become the basis for developing new drugs with structurally unique compounds that have direct application in curing diseases such as cancer, HIV, tuberculosis, malaria, microbial infections like bacterial, fungal, viral, etc. (Mehbub et al., 2014). In addition, symbiotic microorganisms also found to serve as a source of nutrition by transferring metabolite products, contribute to the structural rigidity and also produce bioactive metabolites for the protection of their host sponge (Belarbi et al., 2003; Hildebrand et al., 2004; Ridley et al., 2005; Schmidt et al., 2000). Reports suggest that a large number of bioactive compounds are contributed by demosponges (Dhinakaran et al., 2014; Hooper and Soest, 2002).
The Andaman Sea surrounding A & N Islands, India, is bestowed with rich marine living resources with a total of 6,748 species, among which 126 species are sponges (Pereira et al., 2016). One such species Lamellodysidea herbacea (Keller, 1889) is a tropical shallow-water sponge found commonly throughout the Indo-Pacific region (Hentschel et al., 2001; Newman and Hill, 2006) and also being reported earlier from North Bay, Chidiyatapu, Pongibalu, Ritchie’s Archipelago, Havelock and Nicobar Islands in the Andaman sea (Kiruba et al., 2014; Immanuel et al., 2015). During the present investigation, L. herbacea was collected from the intertidal zone at Carbyn’s Cove for the isolation of endosymbiotic bacteria from its internal part and screen them for bioactive potential strains against human pathogens. It was interesting to note that the intertidal sponge L. herbacea offered a potential source of biologically active compounds, which was isolated from their associated bacteria.
Though there are more than 126 sponge species available in these Islands, still there is a huge gap and limited studies have been carried out on the bioactive potential of these organisms. Some investigations carried out earlier on the sponges from the Andaman Sea, India, mainly focused on the isolation of sponge-associated bacteria and activity of their crude extracts against various pathogens and cancerous cells (Adhavan and Mishra, 2012; Devi and Revathi, 2015; Krishnan et al., 2014; Muthiyan et al., 2017). Also, a recent study by the author reported that the crude extract of Bacillus velezensis CHB2 isolated from sponge Biemna fortis exhibited inhibiting effect against five pathogens B. cereus, B. subtilis, E. coli, L. monocytogenes and S. aureus (Sawhney et al., 2018). The present study was aimed at isolating the bacterial endosymbionts from the sponge L. herbacea and identifies bioactive potential strains against human pathogens.
MATERIALS AND METHODS
Sponge collection and identification
Marine sponge Lamellodysidea herbacea Keller (1889) (Fig. 1), was collected from the intertidal region at Carbyn’s Cove (Lat. 11°38′41.36″N; Long. 92°44′57.46″E) along the coast of South Andaman. Samples were transferred to sterile polythene bags and immediately carried to the laboratory for isolation of endosymbiotic bacteria. A fragment of sponge specimen was also preserved in 70% ethanol for taxonomic identification.
Isolation of the endosymbiotic bacteria and their screening for bioactivity
Sponge sample was washed with sterilized filtered seawater to remove all the debris and then the sponge was surface sterilized using 70% ethanol and immersed in sterile seawater immediately and aspirated. One gram of sponge tissue from the center was cut using a sterile scalpel and immediately transferred to 99 ml sponge dissociation medium (2.7 NaCl, 0.008 KCl and 0.01 Na SO ) and soaked for 20 minutes. Then, the tissues and diluents were macerated in a sterile mortar and pestle. The homogenized tissue was serially diluted up to 10−5 using 50% seawater and plated on Zobell Marine Agar media, 2216 (ZMA, HiMedia). The plates were then incubated at room temperature for 7 days for the development of bacterial colonies. Following this, colonies were streaked on ZMA slants to obtain pure culture and stored at 4°C for further studies (Anand et al., 2006). In this, a total of 10 bacterial strains were isolated from L. herbacea and only eight of them could be sub-cultured in the laboratory conditions. These eight sub-cultured strains were tested for antibacterial activity against six pathogens B. cereus (MTCC 430),B. subtilis (MTCC 121),E. coli (MTCC 443),L. monocytogenes (MTCC839),S. aureus (MTCC 3160) and S. enterica typhimurium (MTCC 1252) initially by the cross streak method (Lertcanawanichakul and Sawangnop, 2008), followed by the agar plug method (Radhakrishnan et al., 2016; Silambarasan et al., 2012) and then by the agar disc diffusion method (Kirby-Bauer method). The most potential strains were identified using biochemical tests and 16S rRNA sequencing and further metabolites from these active strains were extracted and subjected to bioassay against human pathogens to assess its bioactive potential.
Biochemical tests
Biochemical and enzymatic tests were also carried out for the identification of the strains. The various tests included are indole, methyl red, Voges-Proskauer, citrate utilization, glucose, sucrose, adonitol, arabinose, sorbitol, catalase, protease, amylase and cellulase.
PCR amplification, sequencing and phylogenetic analysis of 16S rRNA gene
The genomic DNA of the bacterial strains CAB1 and CAB38 was confirmed by 0.8% (w/v) agarose gel electrophoresis. The strains CAB1 and CAB38 were identified to the species level by PCR amplification of the 16S rRNA gene, followed by sequencing. The 16S rRNA gene was amplified using universal primers 27F (5’-AGAGTTTGATCCTGGCTCAG-3’) and 1492R (5’-GGTTACCTTGTTACGACTT-3’) (Penesyan et al., 2011) to generate a PCR product. The PCR products obtained were then purified and sequenced from Eurofins Pvt. Ltd., Bangalore. The partial sequence of 16S rRNA obtained was then subjected to Basic Local Alignment Search (BLAST) analysis and compared with sequences available in the GenBank nucleotide database. Phylogenetic analysis was performed by aligning different 16S rRNA partial sequences retrieved from the BLAST algorithm (http://www.ncbi.nlm.nih.gov), using the CLUSTAL W program with standard parameters. Phylogenetic and molecular evolutionary analyses were conducted using MEGA version 6 (Tamura et al., 2013). A rooted phylogram was obtained by the maximum likelihood method and an interior branch test was done (1,000 bootstrap replications) to check the tree topology for robustness. The strain CAB1 (GenBank accession number MK135790) was identified as Bacillus amyloliquefaciens and CAB38 (GenBank accession number MK135791) as Alcaligenes faecalis.
.png) | Figure 1. (A) Lamellodysidea herbacea (); (B) Spicules of L. herbacea under the microscope. [Click here to view] |
Extraction of secondary metabolites from active bacterial strains
For the solvent extraction of metabolites, both the potential strains B. amyloliquefaciens CAB1 (MK135790) and faecalis CAB38 (MK135791) were inoculated into 50 ml of Zobell Marine Broth (ZMB, Himedia) separately for seed culture by keeping in a shaker incubator (REMI CIS-24 Plus) for 18 hours at 30°C at 150 rpm. These inoculums were then transferred to 500 ml ZMB and incubated in shaker incubator for 5 days at 28°C at 150 rpm (Gopi et al., 2012). The bacterial cells were separated from the fermentation medium by centrifugation (MPW-350R High speed, brushless centrifuge) at 10,000 rpm at 4°C for 15 minutes.
For the extraction of active metabolites from the bacterial supernatant, ethyl acetate was used. Solvent and the cell-free extract were taken in 2:1 ratio in a separating flask and shaken vigorously for 30 minutes and kept in a burette stand for 1 hour. The organic phase containing compounds was separated from the supernatant and concentrated using rotary evaporator (STRIKE 202, Kentron) to remove the solvent under pressure at 40°C (Zheng et al., 2005). The obtained crude extract was dissolved in methanol (100 mg/ml) and stored in 4°C for further studies on antibacterial activities.
Antibacterial activity of extracted metabolite from endosymbiotic bacteria
Antibacterial assay was conducted using the agar disc diffusion method (Kirby Bauer method). The plates with Muller Hinton Agar (MHA, HiMedia) were spread with six pathogens,B. cereus (MTCC 430), E. coli (MTCC 443), B. subtilis (MTCC 121), L. monocytogenes (MTCC 839), S. aureus (MTCC 3160) and S. enterica typhimurium (MTCC 1252) separately using sterile cotton swabs. A volume of 100 μl of the crude extract was added to the 10 mm sterile disc (Whatman) and allowed to dry at room temperature for 1 hour and then placed on the surface of the MHA plates inoculated with test pathogens. For negative control, 100 μl of methanol was added on the sterile disc, while the positive control used was a standard antibiotic disc (Gentamicin G30, HiMedia). The zone of inhibition (mm) was measured from the edge of the disc after incubating the plates at 37°C for 24 hours.
In-vitro heat and salt tolerance of potential strains
The temperature tolerance of potential bacterial strains CAB1 and CAB38 was assessed by following the modified method of Akond et al. (2016); Verma et al. (2018). The temperature tolerance was assessed by inoculation of freshly grown potential bacterial strains CAB1 and CAB38 in nutrient broth medium (HiMedia) separately at different sets of incubation temperatures of 40°C, 45°C, 50°C, 55°C and 60°C at 120 rpm in a Shaker Incubator (REMI CIS-24 Plus) for 24 hours. Then, the incubated cultures were spot inoculated on nutrient agar plates incubated at room temperature for 24 hours and their bacterial colony growth was examined.
For the NaCl tolerance, freshly grown colonies of potential bacterial strains were streaked on nutrient agar medium supplemented with concentrations of 8% and 10% NaCl, separately for 24 hours at 37°C. The nutrient agar without NaCl was used as control (Mendpara et al., 2013).
RESULTS
Isolation of bacteria from the sponge and their screening
In the present study, out of 10 isolated strains, only eight bacterial strains CAB1, CAB2, CAB3, CAB4, CAB5, CAB31, CAB32 and CAB38 could be sub-cultured and these strains comprise four Gram-negative and four Gram-positive bacteria. The biochemical tests such as indole, Voges-Proskauer, citrate utilization and carbohydrate utilization of glucose, sucrose, adonitol, arabinose and sorbitol along with enzymatic tests for catalase, protease, amylase and cellulase were conducted (Table 1).

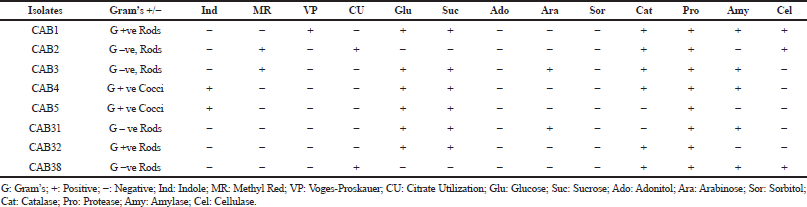

 | Table 1. Biochemical and enzymatic tests of isolated bacterial strains CAB1, CAB2, CAB3, CAB4, CAB5, CAB31, CAB32, and CAB38. [Click here to view] |
The initial screening of eight isolated strains for their antibacterial activity by both the cross streaking and agar plug method showed that only two strains CAB1 and CAB38 were active.
Molecular identification
Species-level identification was determined by 99% sequence similarity of 16S rRNA with the sequence available on the GenBank. Sequence alignment and comparison was performed using multiple sequence alignment program CLUSTAL W using Mega version 6.0 software. Phylogenetic tree was constructed using the Maximum likelihood method for both the strains based on the Hasegawa–Kishino–Yano model as the best fitting model with 1,000 bootstrap replications. Bar 0.02 substitutions per nucleotide position were adopted. The outgroups used were Bacillus cereus (MH769499) in the case of strain CAB1 and Paenalcaligenes suwonensis (NR133804) in the case of strain CAB38. The 16S rRNA sequences of the isolates were deposited in GenBank database under respective accession number MK135790 and MK135791 for CAB1 and CAB38. Based on the nucleotide homology and phylogenetic analysis, both CAB1 and CAB38 were identified as B. amyloliquefaciens and A. faecalis, respectively (Fig. 2).
The gel electrophoresis of PCR product both of the active stains CAB1B. amyloliquefaciens and CAB38A. faecalis exhibited a band of 1.5 kb on 0.8% (w/v) agarose gel in 1× TAE buffer when compared to 100 bp DNA ladder (HiMedia) (Fig. 3).
In the present assay, only two isolated strains out of 10 isolates, i.e., 20% of the strains were found to be antibiotic producers against human pathogens. The antibiotic-producing activity varied from strain to strain as found in the in-vitro assay of ethyl acetate extracts of both the active strains against human pathogens (Fig. 4). The extract of B. amyloliquefaciens CAB1 showed activity against four pathogens B. cereus, B. subtilis, S. aureus and S. entrica typhimurium with prominent zone of inhibition as 18, 12, 20 and 12 mm, respectively (Fig. 4A), whereas the extract of A. faecalis CAB38 showed activity against three pathogens B. subtilis, E. coli and S. entrica typhimurium with the inhibition zone of 15, 16 and 12 mm, respectively (Fig. 4B). But both the strains commonly exhibited activity against B. subtilis and S. entrica typhimurium and there was no activity against L. monocytogens exhibited by any of the strains.
The highest activity was noted by the strain B. amyloliquefaciens CAB1 against S. aureus with very a prominent inhibition zone of 20 mm, whereas in case of A. faecalis CAB38, the highest zone of inhibition of 16 mm was noted against E. coli (Table 2).
The results suggest that the crude extract of two endosymbionts had an antagonistic effect on five pathogens and did not have any effect on L. monocytogens, which is a Gram-negative bacteria. The temperature tolerance tests for both the strains suggest that both of the strains have thermal stability, which can withstand and could be revived even after incubation at 60°C for 24 hours in the case of B. amyloliquefaciens CAB1, whereas A. faecalis CAB38 can be retrieved at 40°C. The salt tolerance was observed for B. amyloliquefaciens CAB1 at the upper limit of 8% NaCl, whereas A. faecalis CAB38, it was both at 8% and 10% of NaCl.
DISCUSSION
Due to the emergence of multi-resistant pathogenic micro-organisms, attempts to discover new antibiotic-producing strains have increased (Anand et al., 2006) and this has accelerated the search for new marine natural products (Hu et al., 2011). Among all the marine organisms investigated, sponges have been the richest sources of marine natural products (Mehbub et al., 2014). These holobionts serve as the host for many micro-organisms (Webster and Taylor, 2012), which contribute to host health, ecology and evolution (Pawlik et al., 2002; Taylor et al., 2007). It is also been reported that in the sponge-associated microbiome, about 90% of the antimicrobial compounds found to be produced by bacteria, 10% by fungi and Bacillus sp. contribute about 9% (Indraningrat et al., 2016). In the present study, eight symbiotic strains from sponge L. herbacea have been isolated, of which 20% of the isolated strains exhibited antibacterial activity against human pathogens. Out of these eight strains, Gram-positive and Gram-negative strains were in equal proportion and six were rods and two were cocci type strains. Although other six strains did not have any effect on the assayed pathogens in this investigation, they may have some beneficial role in the lifecycle of the host sponge. Also, both the biochemical and enzymatic test showed specific characteristics of the strains. As many Gram-positive bacteria are endospore producers at adverse conditions like the marine environment, it might be helpful to survive in the marine environment (Hentschel et al., 2001). Also, potential marine microorganisms are used as a source of industrially important enzymes for extracellular enzymatic activities like amylase, cellulase and protease. These two isolated microbial strains also possess characteristic features like thermostability and salinity tolerance. It has also been documented that only 1% of the microbes are being cultured with present techniques, which shows bioactivity, but other non-culturable species, which are also available in the sponge tissue, may also be having significant bioactive potential specific to its host sponge (Hentschel et al., 2001; Proksch et al., 2002).

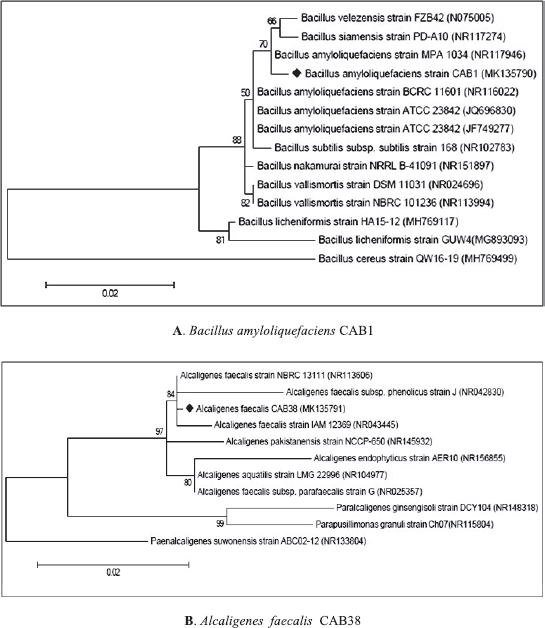

 | Figure 2. Phylogenetic tree for isolates (A) B. amyloliquefaciens CAB1 and (B) CAB38A. faecalis constructed using the Maximum Likelihood method. [Click here to view] |
Although both the strains were found to possess active molecules, the extracts obtained from B. amyloliquefaciens were more active against four pathogens with the highest zone of inhibition in comparison to the extracts of A. faecalis, which showed activity against three pathogens. Previously from many other sources, different strains of B. amyloliquefaciens have been isolated such as sediments, sponges, tannery soil, etc. and B. amyloliquefaciens MB-101 isolated from sponge Callyspongia diffusa showed biosurfactant properties (Dhasayan et al., 2015). In another study by Flemer et al. (2011), it was found that three strains of B. amyloliquefaciens W15C18a, W15C2 and W15M1A from sponge Leucosolenia sp. had antibacterial and antifungal activity. However, the present result suggested that crude extracts from B. amyloliquefaciens have a significant antagonistic effect on four pathogens B. cereus, B. subtilis, S. aureus and S. entrica typhimurium and extracts from A. faecalis against three pathogens subtilis, E. coli and S. entrica typhimurium.
 | Figure 3. Agarose Gel Electrophoresis showing 1.5 kb DNA fragment of 16S rRNA of B. amyloliquefaciens CAB1 and A. faecalis CAB38. “L” denotes 100 bp DNA Ladder. [Click here to view] |
 | Figure 4. (A and B) Effect of crude extract of B. amyloliquefaciens and A. faecalis against different human pathogens (a: Disc containing crude extract; b: Standard antibiotic disc; and c: Disc containing Methanol). [Click here to view] |
 | Table 2. Zone of Inhibition by the crude extracts of B. amyloliquefaciens and A. facealis against human pathogens. [Click here to view] |
The earlier reports suggested that the compound L,L-Diketopiperazines extracted from A. faecalis A72 (GenBank No. DQ180141) from sponge Stelletta tenuis showed significant activity against B. subtilis and moderate activity against Aspergillus niger, Paecilomyces variotii and Candida albicans (Li et al., 2007; 2008). The present study also confirms that the extracts obtained from strain A. faecalis CAB38 contain some unique compounds, which have an inhibitory effect on bacterial pathogens. Similarly, one strain of A. faecalis isolated from Moroccan tannery waste had a broad spectrum of antibacterial activity against both the Gram-positive and negative bacteria, i.e.,M. smegmatis, E. coli, P. aeruginosa, B. subtilis and S. aureus (Zahir et al., 2013). A similar trend was observed in this study, where the compound/s in the crude extracts of A. faecalis exhibited activity against both Gram-positive and negative bacteria B. subtilis, E. coli and S. aureus, which suggest that the species could be a potential source for the extraction of such bioactive molecules.
In another study,in-vivo screening of chloroform extracts of A. faecalis isolated from Sponge Haliclona spp. inhibited the growth of Vibrio alginolyticus in Caenorhabditis elegans (Durai et al., 2013). However, in both the cases, extracted substances obtained either with ethyl acetate as in the present case or with chloroform, the active compound possessed by the bacterium in the form of metabolites found to be a potential source against many human pathogens. The findings suggest that both the active strains isolated from L. herbacea are capable of producing bioactive compounds against human pathogens. Also,L. herbacea happens to be a potential species contributing toward secondary metabolites like polybrominated diphenyl ethers (Unson et al., 1994), having several bioactive implications and it may be a major source from the Andaman Sea too towards the development of new drug molecules. Simultaneously, the possible role of two isolated bacteria A. faecalis and B. amyloliquefaciens from L. herbacea in the development of potential drugs cannot be overlooked.
