Solubility enhancement of nimodipine through preparation of Soluplus® dispersions

Rawda Yaseen AlSheyyab1, Rana Mohammad Obaidat2, Yara Radi Altall3, Rana Talal Abuhuwaij4, Rand Radwan Ghanma5, Anoud Sameer Ailabouni6, Hadeia Ahmad Mashaqbeh7, Shayma Al-Haj8

  Author Affiliations


Abstract

The present work aims to enhance the water solubility of nimodipine, a hydrophobic drug, using a solid dispersion (SD) technique. Soluplus® as a novel hydrophilic polymeric carrier was used. Nimodipine-Soluplus® SDs (1:10) were prepared by impregnation technique using supercritical fluid technology (SCF) and compared with the ones which were prepared by conventional hot-melt (HM) method. The solubility and the in vitro release study of the raw drug, solid dispersions, and the corresponding physical mixtures were characterized and compared. The prepared SD by SCF technology showed 77-fold increase in nimodipine solubility, in comparison to 48-fold increase when prepared by HM and 7.7-fold when physically mixed. Moreover, they showed the highest percentage of nimodipine cumulative release within the studied period. The results were confirmed the amorphous transfer of the drug into the polymer matrix which was assured by the powder X-ray diffraction and the thermal analysis. In addition to the hydrogen bond formation between nimodipine and Soluplus®, which was evident in the FTIR spectra; A weakening of peak related to nimodipine N–H stretching and C=O of the ester group. Nimodipine solid dispersion with Soluplus® using the SCF technology might represent a promising formulation for nimodipine to enhance its oral bioavailability.

Keywords:

Nimodipine, solid-dispersion, Soluplus®, supercritical fluid technology.



Citation: AlSheyyab RY, Obeidat RM, Altall YR, Abuhuwaij RT, Ghanma RR, Ailabouni AS, Mashaqbeh HA, Al-Haj S. Solubility enhancement of nimodipine through preparation of Soluplus® dispersions. J Appl Pharm Sci, 2019; 9(09): 030–037.


Copyright: The Author(s). This is an open access article distributed under the Creative Commons Attribution Non-Commercial License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

References

Charoenchaitrakool M, Dehghani F, Foster N, Chan H. Micronization by rapid expansion of supercritical solutions to enhance the dissolution rates of poorly water-soluble pharmaceuticals. Ind Eng Chem Res, 2000; 39(12):4794-802. https://doi.org/10.1021/ie000151a

Chiou WL, Riegelmant S. Pharmaceutical applications of SD systems. J Pharm Sci, 1971; 60(9):1281-302. https://doi.org/10.1002/jps.2600600902

Djuris J, Nikolakakis I, Ibric S, Djuric Z, Kachrimanis K. Preparation of carbamazepine-Soluplus®® SDs by hot-melt extrusion, and prediction of drug-polymer miscibility by thermodynamic model fitting. Eur J Pharm Biopharm, 2013; 84(1):228-37. https://doi.org/10.1016/j.ejpb.2012.12.018

Fu Q, Sun J, Zhang D, Li M, Wang Y, Ling G, Liu X, Sun Y, Sui X, Luo C, Sun L, Han X, Lian H, Zhu M, Wang S, He Z. Nimodipine nanocrystals for oral bioavailability improvement: preparation, characterization and pharmacokinetic studies. Colloids Surf B Biointerfaces, 2013; 109:161-6. https://doi.org/10.1016/j.colsurfb.2013.01.066

Fule R, Amin P. Development and evaluation of lafutidine SD via hot melt extrusion: Investigating drug-polymer miscibility with advanced characterisation. Asian J Pharm Sci, 2014; 9(2):92-106. https://doi.org/10.1016/j.ajps.2013.12.004

Ghareeb MM, Neamah AJ. Formulation and characterization of nimodipine nanoemulsion as ampoule for oral route. Int J Pharm Sci Res, 2017; 8(2):591-602; doi:10.13040/IJPSR.0975-8232.8(2).

Gorajana A, Rajendran A, Koteswara Rao N. Preparation and in-vitro evaluation of SD of nimodipine using PEG 4000 and PVP K30. J Pharm Res Health Care, 2010; 2(2):163-9.

Gorajana A, Rao NK, Nee WY. Physicochemical characterization and in-vitro evaluation of SDs of nimodipine with PEG 8000. Asian J Chem, 2011; 23(7):2857-9.

Grunenberg A, Keil B, Henck J-O. Polymorphism in binary mixtures, as exemplified by nimodipine. Int J Pharm, 1995; 118(1):11-21. https://doi.org/10.1016/0378-5173(94)00284-C

Homayouni A, Sadeghi F, Varshosaz J, Garekani H. Soluplus®®; a novel excipient to improve dissolution rate of poorly water soluble drug, celecoxib. Res Pharm Sci, 2012; 7(5):386.

Kale AA, Patravale VB. Design and evaluation of self-emulsifying drug delivery systems (SEDDS) of nimodipine. AAPS PharmSciTech, 2008; 9(1):191-6. https://doi.org/10.1208/s12249-008-9037-9

Kiwilsza A, Milanowski B, Drużbicki K, Coy LE, Grzeszkowiak M, Jarek M, Mielcarek J, Lulek J, Pajzderska A, Wąsicki J. Mesoporous drug carrier systems for enhanced delivery rate of poorly water-soluble drug: nimodipine. J Porous Mater, 2015; 22(3):817-29. https://doi.org/10.1007/s10934-015-9955-3

Kopecký F, Kopecka B, Kaclik P. Dissolution of nimodipine in an aqueous solution of hydroxyethyl-beta-cyclodextrin and a review of solubility of nimodipine with cyclodextrins. Ceska a Slovenska farmacie: casopis Ceske farmaceuticke spolecnosti a Slovenske farmaceuticke spolecnosti. Ceska Slov Farm, 2003; 52(1):33-8.

Kreidel RN, Duque MD, Serra CHR, Velasco MVR, Baby AR, Kaneko TM, Consiglieri VO. Dissolution enhancement and characterization of nimodipine SDs with poloxamer 407 or PEG 6000. J Disper Sci Technol, 2012a; 33(9):1354-9. https://doi.org/10.1080/01932691.2011.605663

Liu YF, Qiu HC, Su J, Jiang W. Drug treatment of cerebral vasospasm after subarachnoid hemorrhage following aneurysms. Chin Neurosurg J, 2016; 2(4):1-8. https://doi.org/10.1186/s41016-016-0023-x

Masumoto K, Takeyasu A, Oizumi K, Kobayashi T. Studies of novel 1, 4-dihydropyridine Ca antagonist CS-905. I. Measurement of partition coefficient (log P) by high performance liquid chromatography (HPLC). Yakugaku Zasshi J Pharm Soc Japan. 1995; 115(3):213-20. https://doi.org/10.1248/yakushi1947.115.3_213

Mendiratta C, Kadam V, Pokharkar V. Lansoprazole SD using a novel amphiphillic polymer Soluplus®®. J Chem Pharm Res. 2011; 3:536- 43.

Obaidat R, Alnaief M, Jaeger P. Significant solubility of carbon dioxide in Soluplus®® facilitates impregnation of ibuprofen using supercritical fluid technology. Pharm Dev Technol, 2018; 23(7):697-705. https://doi.org/10.1080/10837450.2017.1315135

Obaidat RM, Tashtoush BM, Awad AA, Al Bustami RT. Using supercritical fluid technology (SFT) in preparation of Tacrolimus SDs. AAPS PharmSciTech, 2017; 18(2):481-93. https://doi.org/10.1208/s12249-016-0492-4

Papageorgiou GZ, Bikiaris D, Karavas E, Politis S, Docoslis A, Park Y, Stergiou A, Georgarakis E. Effect of physical state and particle size distribution on dissolution enhancement of nimodipine PEG SDs prepared by melt mixing and solvent evaporation. Am Assoc Pharm Sci, 2006; 8(4):E623-31. https://doi.org/10.1208/aapsj080471

Rahman Z, Siddiqui A, Khan MA. Assessing the impact of nimodipine devitrification in the ternary cosolvent system through quality by design approach. Int J Pharm, 2013; 455(1-2):113-23. https://doi.org/10.1016/j.ijpharm.2013.07.049

Riekes MK, Pereira RN, Rauber GS, Cuffini SL, de Campos CE, Silva MA, Stulzer HK. Polymorphism in nimodipine raw materials: development and validation of a quantitative method through differential scanning calorimetry. J Pharm Biomed Anal, 2012; 70:188-93. https://doi.org/10.1016/j.jpba.2012.06.029

Sapkal S, Babhulkar M, Rathi A, Mehetre G, Narkhede M. An overview on the mechanisms of solubility and dissolution rate enhancement in SD. Int J PharmTech Res, 2013; 5(1):31-9.

Savjani KT, Gajjar AK, Savjani JK. Drug solubility: importance and enhancement techniques. ISRN Pharm, 2012; 2012:1-10. https://doi.org/10.5402/2012/195727

Semcheddine F, Guissi NEI, Liu X, Wu Z, Wang B. Effects of the preparation method on the formation of true nimodipine SBE-β-CD/HP- β-CD inclusion complexes and their dissolution rates enhancement. AAPS PharmSciTech, 2015; 16(3):704-15. https://doi.org/10.1208/s12249-014-0257-x

Shamma RN, Basha M. Soluplus®®: a novel polymeric solubilizer for optimization of Carvedilol SDs: formulation design and effect of method of preparation. Powder Technol, 2013; 237:406-14. https://doi.org/10.1016/j.powtec.2012.12.038

Sharma A, Jain CP. SD: a promising technique to enhance solubility of poorly water soluble drug. Int J Drug Delivery, 2011; 3:149-70.

Sharma DK, Joshi SB. Solubility enhancement strategies for poorly water-soluble drugs in SD: a review. Asian J Pharm, 2007; 1(1):9-19.

Sin J, Shafeeq H, Levy Z. Nimodipine for the treatment of otolaryngic indications. AMJ Health Syst Pharm, 2018; 75(18):1369-77. https://doi.org/10.2146/ajhp170677

Sweetman S, Martindale I. The complete drug reference. Pharmaceutical Press, London, UK, 2002.

Teng Z, Yu M, Ding Y, Zhang H, Shen Y, Jiang M, Liu P, Damoah Y, Webster T, Zhou J. Preparation and characterization of nimodipine-loaded nanostructured lipid systems for enhanced solubility and bioavailability. Int J Nanomedicine, 2019; 14:119-33. https://doi.org/10.2147/IJN.S186899

Thakral NK, Ray AR, Bar-Shalom D, Eriksson AH, Majumdar DK. Soluplus®-solubilized citrated camptothecin-a potential drug delivery strategy in colon cancer. Am Assoc Pharm Sci, 2012; 13(1):59-66. https://doi.org/10.1208/s12249-011-9720-0

Thiry J, Lebrun P, Vinassa C, Adam M, Netchacovitch L, Ziemons E, Hubert P, Krier F, Evrard B. Continuous production of itraconazole-based solid dispersions by hot melt extrusion: preformulation, optimization and design space determination. Int J Pharm, 2016; 515(1-2):114-24. https://doi.org/10.1016/j.ijpharm.2016.10.003

Urbanetz NA. Stabilization of SDs of nimodipine and polyethylene glycol 2000. Eur J Pharm Sci, 2006; 28(1-2):67-76. https://doi.org/10.1016/j.ejps.2005.12.009

Urbanetz NA, Lippold BC. SDs of nimodipine and polyethylene glycol 2000: dissolution properties and physico-chemical characterisation. Eur J Pharm Biopharm, 2005; 59(1):107-18. https://doi.org/10.1016/j.ejpb.2004.08.005

Vergouwen, M. D., Vermeulen, M., Roos, Y. B. Effect of nimodipine on outcome in patients with traumatic subarachnoid haemorrhage: a systematic review. Lancet Neurol, 2016; 5(12):1029-32. https://doi.org/10.1016/S1474-4422(06)70582-8

Vo CL, Park C, Lee BJ. Current trends and future perspectives of SDs containing poorly water-soluble drugs. Eur J Pharm Biopharm, 2013; 85(3 Pt B):799-813. https://doi.org/10.1016/j.ejpb.2013.09.007

Wessell A, Kole MJ, Badjatia N, Parikh G, Albrecht JS, Schreibman DL, Simard JM. High compliance with scheduled nimodipine is associated with better outcome in aneurysmal subarachnoid hemorrhage patients cotreated with heparin infusion. Front Neurol, 2017; 8:1-9. https://doi.org/10.3389/fneur.2017.00268

Xu X, Chen X, Wang Z, Jing X. Ultrafine PEG-PLA fibers loaded with both paclitaxel and doxorubicin hydrochloride and their in-vitro cytotoxicity. Eur J Pharm Biopharm, 2009; 72(1):18-25. https://doi.org/10.1016/j.ejpb.2008.10.015

Yin X, Daintree LS, Ding S, Ledger DM, Wang B, Zhao W, Qi J, Wu W, Han J. Itraconazole SD prepared by a supercritical fluid technique: preparation, in-vitro characterization, and bioavailability in beagle dogs. Drug Des Devel Ther, 2015; 9:2801-10. https://doi.org/10.2147/DDDT.S81253

Zheng X, Yang R, Tang X, Zheng L. Part I: characterization of SDs of nimodipine prepared by hot-melt extrusion. Drug Dev Ind Pharm, 2007; 33(7):791-802. https://doi.org/10.1080/03639040601050213

/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/

INTRODUCTION

The poorly aqueous solubility of new chemical entities is increasingly posing a significant challenge in the development of the pharmaceutical industry (Sharma and Joshi, 2007). The biopharmaceutical classification system (BCS) classifies drugs based on the drug solubility and permeability into four classes (Sapkal et al., 2013). Class II drugs have dissolution-limited absorption; they have low solubility and high permeability. The limited solubility can lead to failure in reaching the desired concentration of the desired pharmacological action (Savjani et al., 2012).

Nimodipine is a (1,4) Dihydro(2,6)dimethyl (4-(3-nitrophenyl)(3,5)pyridine dicarboxylic acid 2-methoxyethyl 1-methyl-ethyl ester, (Fig. 1). It is a dihydropyridine calcium channel blocker (Teng et al., 2018). Nimodipine has been proposed as the first choice for prevention and the treatment of delayed ischemic neurological disorders following subarachnoid hemorrhage (Liu et al., 2016; Vergouwen et al., 2018).

Nimodipine acts mainly by hindering calcium influx through the voltage-dependent calcium channel and inhibiting vascular smooth muscle contraction which causes vasodilatation (Sin et al., 2018). It is a highly hydrophobic drug, can pass the blood brain barrier, and delivered to brain and also the cerebrospinal fluid (Wessell et al., 2017).

Nimodipine belongs to class II of the (BCS) classification. It has mainly poor water solubility with good permeability characteristic due to its high lipophilicity (log p = 3.41) (Masumoto et al., 1995). Nimodipine is a basic compound with predicted pka value equals to 5.41. It is freely soluble in methanol, dioxane, ethanol, and DMSO (Urbanetz and Lippold, 2005). It is available in several FDA approved dosage forms, soft gelatin capsules, tablets, liquid for intravenous administration, and oral solution (Sweetman and Martindale, 2002).

Nimodipine has two enantiomers and shows two polymorphic forms. Modification 1 is the commercialized crystal form of the drug. It is a racemic mixture that contains an equal ratio of two enantiomorphs, and it is the metastable form. Modification 2 is the mixture of pure S and R enantiomer, and it is the stable form (Rahman et al., 2013). The solubility of the two modifications is entirely different. Modification 1 exhibits double solubility value of (0.36 mg/l) compared to modification 2 (0.18 mg/l) (Grunenberg et al., 1995, Riekes et al., 2012).

Several techniques had been reported in the literature to improve nimodipine solubility and dissolution rate, such as nanoparticle technology (Fu et al., 2013), self-microemulsification (Kale and Patravale, 2008), complexation with cyclodextrins (Kopecký et al., 2003), and solid dispersion (SD) (Papageorgiou et al., 2006; Thirty et al., 2016). Among these methods, SDs had the advantages of scaling up ability and excellent economical outcomes (Kreidel et al., 2012).

SD is a type of solid formulations; it consists of two or more components, usually hydrophilic polymer and a hydrophobic active ingredient. These polymeric matrices can be either crystalline or amorphous form (Chiou and Riegelmant, 1971). SD enhances the drug dissolution by various mechanisms, such as reduction of particle size, improving wettability, increasing porosity, and amorphous state formation (Sharma and Jain, 2011). Various methods were used for preparing the SDs. These included the melting method, solvent extraction or evaporation, extrusion, lyophilization method, spray congealing and drying, and supercritical fluid technology (Vo et al., 2013). Nimodipine SDs were prepared by using various methods, such as melt mixing and solvent evaporation. They were prepared by using different polymers, such as polyethylene glycol with different molecular weight (Kreidel et al., 2012; Papageorgiou et al., 2006, Urbanetz, 2006), poloxamer (Kreidel et al., 2012), polyvinylpyrrolidone K30 (Gorajana et al., 2010), hydroxypropyl methylcellulose, and Eudragit® EPO (Zheng et al., 2007).

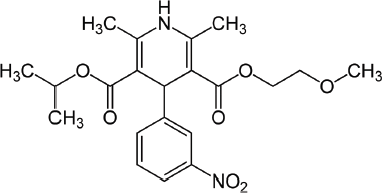

Figure 1. Chemical structure of nimodipine.

[Click here to view]

Soluplus® is a polyvinyl caprolactam–polyvinyl acetate–polyethylene glycol graft copolymer that consists of 13% macrogol (PEG 6000), 57% vinyl caprolactam, and 33% vinyl acetate, (Fig. 2). It is a novel polymer with amphiphilic properties (Vo et al., 2013). Due to its bi-functional characters, it acts as a matrix polymer for a solid solution as well as an active solubilizer for drugs that have low solubility in aqueous fluids attributed to micelle formation. Moreover, Soluplus® has a strong potential to improve the oral bioavailability of low water-soluble drugs by enhancing its intestinal absorption (Shamma and Basha, 2013).

Many studies proved the effectiveness of Soluplus® dispersions which were prepared by using different conventional techniques. They improved the rate of dissolution for drugs that have poor water solubility, such as carbamazepine [hot-melt (HM) extrusion] (Djuris et al., 2013), camptothecin (solvent evaporation) (Thakral et al., 2012), and carvedilol (spray drying and freeze drying) (Shamma and Basha, 2013). Also, Soluplus® enhanced the dissolution of other poorly water-soluble class II drugs, such as tacrolimus and itraconazole, by using the most recent technology; Impregnation using supercritical fluid technology (SCF) (Obaidat et al., 2017; Yin et al., 2015).

In the present work, the SD of nimodipine with Soluplus® using the conventional HM method and the SCF technology was prepared, characterized, assessed, and compared regarding nimodipine solubility and dissolution rate enhancement ability.


EXPERIMENTAL

Materials

Nimodipine was kindly donated from JPM Company (Naour, Jordan). Soluplus® (polyvinyl caprolactam–polyvinyl acetate–polyethylene glycol graft copolymer in the ratios of 57%– 33%–13%, respectively) was kindly provided by the BASF company (Ludwigshafen, Germany). Potassium Bromide (IR Spectroscopy grade) and methanol were provided by Fisher chemical, UK. Nylon membrane filters 0.45 μm were from Bonna-Agela Technologies, US. Carbon dioxide (CO2) that ha 99.995% purification grade was supplied by the Jordanian Gas Co., Amman, Jordan. All the materials were used as provided without any modification.

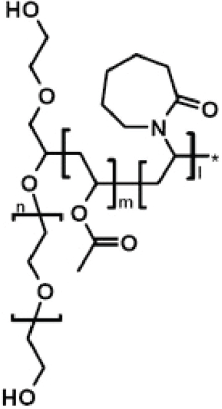

Figure 2. Soluplus® chemical structure.

[Click here to view]


METHODS

Preparation of nimodipine-Soluplus® SD by the HM method

The Soluplus® carrier was melted separately at a temperature of 70°C. Nimodipine was added with continuous stirring, and the temperature was increased carefully to 120°C until a homogeneous mixture was formed. The mixture was immediately cooled on a water bath. The solidified mass was scrapped, crushed, and pulverized using the mortar and pestle. A mesh screen 300–180 μm was used to sieve the prepared SD powder, after that they were stored at room temperature in the silica gel desiccators until their use. The ratio of nimodipine: Soluplus® was 1:10.

Preparation of nimodipine-Soluplus® SD by the supercritical fluid method

Nimodipine powder was mixed with the Soluplus® at a ratio of 1:10, and then placed in a stainless-steel vessel (Eurotechnica, GmbH, Germany). CO2 was entered to the vessel using double acting piston pumps at a rate of 100 g/ minute until reaching the required pressure (100 bar) at 40°C. The same conditions were continued for two hours. After that, depressurization was started at a rate of around 0.5 bar/s. The formed foamy SDs were then grinded using mortar and pestle and sifted through mesh screen 300–180 μm to get the desirable size. The samples were stored at room temperature in the desiccator.

Preparation of nimodipine-Soluplus® physical mixtures (PMs)

PMs were prepared by mixing nimodipine with Soluplus® (1:10) in a mortar by trituration for 15 minutes. The PMs were kept in the desiccator at room temperature until use.

Physicochemical characterization

Powder X-ray diffraction (PXRD)

PXRD was done by Ultima IV X-ray diffractometer (Rigaku, Japan) using cobalt radiation (CuKα) using voltage of 40 kV and a current of 30 mA at room temperature with diffraction angles of 2θ starting from 0° to 60°. The step scan mode was used with a step size of 0.02°.

Fourier transform infrared spectroscopy (FTIR)

FTIR studies for raw materials, PMs, and SDs were carried out using IRAffinity-1 Spectrophotometer (Shimadzu, Japan) with KBr as a reference. Thirty milligrams of each sample was physically mixed with 270 mg KBr and grinded using mortar and pestle to obtain homogenous samples. The scanning range was from 4,000–450 cm−1.

Differential scanning calorimetry (DSC)

DSC thermograms were recorded using DSC 204 (Netzch, Germany). Indium was used to calibrate temperature and energy scale. An accurately weighed sample was placed in an aluminum pan and sealed, then it was heated up until reaching 200°C under fixed gas flow of nitrogen using a rate of 30 ml/ minute. The reference used was an empty sealed aluminum pan.

Thermogravimetric analysis (TGA)

TGA thermograms of pure nimodipine were analyzed using a Shimadzu TGA-50 under nitrogen. The sample was first equlibruimed at 25°C, and then heated under nitrogen at a rate of 10°C minute−1, up to final temperature 350°C.

Solubility determination of nimodipine in water

Saturation water solubility of the pure nimodipine, PM, and the SDs by HM and SCF was determined. The known excess samples, which were equivalent to 10 mg of nimodipine, were placed into a volumetric flask (100 ml), and the water was added accurately by volume up to the final mark. The flasks were placed in a water bath shaker at 37°C for 24 hours. Then, samples were filtered through 0.45-μm silicon membrane filter and analyzed by UV spectrophotometer at λmax 237 nm. The test was replicated three times. A calibration curve was performed with R2 value equals 0.99. The absorbance of Soluplus® at λmax = 237 nm was negligible.

In vitro sissolution studies

Thirty-milligram of pure nimodipine, PM, and SDs by HM and SCF containing 30 mg nimodipine were accurately weighed. The dissolution rate studies were carried out in 900 ml of 0.5% sodium dodecyl sulfate in water with pH 6.4 at 37°C using rotating paddle at 50 rpm (U.S. FDA method). At predetermined time intervals 10, 20, 30, 45, 60, and 120 minutes, 5 ml sample was withdrawn, filtered through a 0.45-μm membrane filter, and assayed spectrophotometrically at 237 nm. Sink condition was maintained by replacing an equal volume of dissolution media after each withdrawn sample. A calibration curve was performed with R2 value equals 0.99, with the linear range of nimodipine concentration (0.8–2.4) μg/ ml, the used solvent was water, and suitable dilution was performed.


RESULTS AND DISCUSSION

Physicochemical characterization of nimodipine

Powder X-ray diffraction (PXRD)

PXRD of pure nimodipine (Fig. 3) illustrated the crystalline nature of nimodipine modification 1. Numerous sharp peaks were visible with original ones at 2θ of 6.10, 11.74, 17.70, 18.20, 20.16, 20.98, and 24.70 and similar to those appeared in Gorajana et al. (2011). Moreover, the crystallinity was obvious in the PM as indicated by the presence of the sharp peaks. In the other side, SDs by HM and SCF exhibited complete conversion into the amorphous form of the drug, which was indicated by the presence of an amorphous halo.

Fourier transform infrared spectroscopy (FTIR)

FTIR of nimodipine modification 1 (Fig. 4) showed many main peaks at; 3,297 cm−1 due to N–H stretching, 3,097 cm−1 due to C–H aromatic stretching, 2,933 cm−1 due to C–H aliphatic stretching, 1,695 cm−1 due to C = O stretching in ester, 1,648 cm−1 due to C = C stretching, 1,621 cm−1 due to C = C aromatic, 1,523 cm−1 due to −NO2, 1,381 cm−1 due to −C–CH3, and 1,134 cm−1 that can be related to −C–O– ester. All these bands were assigned as the fingerprints of nimodipine in the literature (Semcheddine et al., 2015).

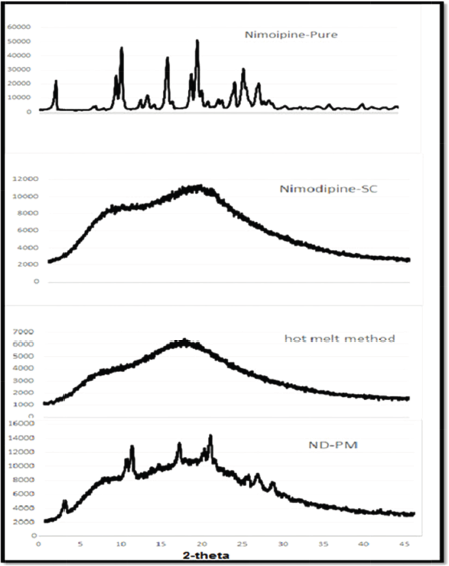

Figure 3. PXRD of pure nimodipine, PM, HM, and SCF solid dispersions with cobalt radiation (CuKα) at a voltage of 40 kV and a current of 30 mA at room temperature with diffraction angles from 0° to 60° of 2-theta.

[Click here to view]

By comparing the FTIR spectrum of pure nimodipine with its SD (HM and SCF), it seemed that the intensity of the secondary amide peak (at around 3,297 cm−1) and of the C=O peak (at around 1,696 cm−1) was significantly reduced and almost disappeared. This can be explained by the formation of the hydrogen bonding between Soluplus® hydroxyl group and nimodipine. It was well identified that upon the formation of hydrogen bonding, the bands could shift to different wave lengths with reduced intensities or even could disappear (Xu et al., 2009). Moreover, a new peak appeared at 2,500 cm−1 in the spectrogram of SCF that reflected the sorption of CO2 as discussed by Obaidat et al. (2018).

On the other hand, by comparing the FTIR of pure nimodipine with the PM (Fig. 4), same peaks particularly the amide peak (at around 3,297 cm−1) and the C=O peak (at around 1,696 cm−1) was obvious in both spectra, indicating no interactions between nimodipine and Soluplus® in the PM.

Differential scanning calorimetry (DSC)

DSC thermograms of the PM (Fig. 6) showed that they had the same endothermic peaks of raw materials. A peak at approximately 126°C possibly represented the melting point of nimodipine as shown in Figure 5. The findings matched with the previous studies performed by Papageorgiou et al. (2006) and Mowafaq and Abulfadhel (2017). The presence of this peak indicated the appearance of nimodipine in its crystalline form. Another endothermic peak was obvious at temperature 70°C that represents the polymeric glass transition temperature as declared by Mendiratta et al. (2011). On the other hand, DSC thermograms of SDs indicated that the morph of nimodipine in the solid dispersion is amorphous form, and the anticipated melting endotherm was not appeared in melting point range when the SDs prepared by HM and SCF.

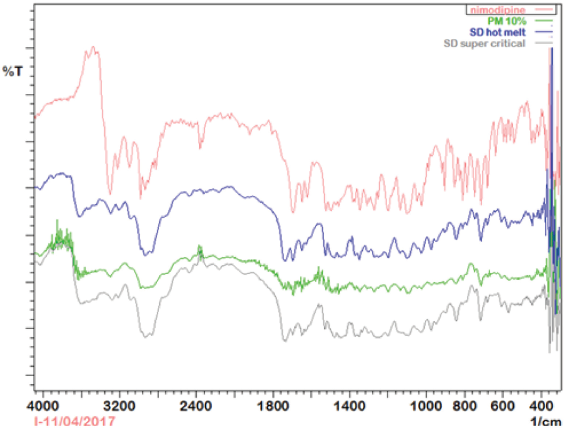

Figure 4. FTIR spectra of nimodipine, PM, solid dispersions by HM and SCF.

[Click here to view]

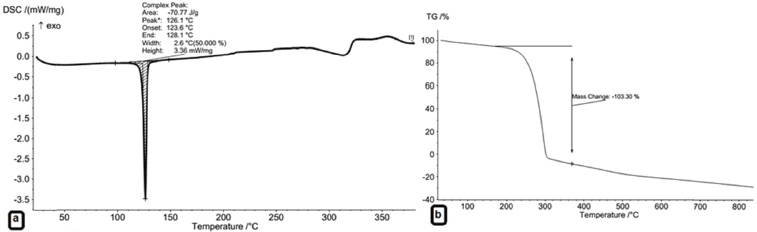

Figure 5. DSC of nimodipine pure powder.

[Click here to view]

Thermogravimetric analysis (TGA)

Figure 5 shows the TGA results of the raw nimodipine drug. It shows the thermal behavior of nimodipine. A significant mass loss started after 200°C and was related to the decomposition of nimodipine. Similar results were reported in the previous studies of Kiwilsza et al. (2015).

Solubility determination of nimodipine in water

Since the poor solubility of nimodipine is cosidered a major problem in the pharmaceutical formulations of this drug, it was expected that the use of amphiphilic Soluplus® polymer would enhance nimodipine solubility significantly and would enhance consequently its bioavailability. Table 1 shows the solubility values of nimodipine in water at 37ºC. The solubility of raw nimodipine (modification 1) was determined to be 0.0653 mg/100 ml. Accordingly, nimodipine is classified based on the solubility expressions as slightly soluble drug as expressed in U.S. Pharmacopeia and National Formulary. The solubility value was increased in nimodipine-Soluplus® PM (the physical mixture) by 7.7-folds. This increment was probably due to a wettability improvement by the Soluplus® polymer (Fule and Amin, 2014).

Moreover, nimodipine-Soluplus® solid dispersions results showed a significant improvement in the solubility of nimodipine, especially with supercritical dispersion method which demonestrated remarkable highest increase in solubility. Around 77-folds and 48-folds increase were observed using SCF and HM methods, respectively. These results could be attributed to the conversion of nimodipine to the amorphus form inside the Soluplus® polymer which confirmed by the DSC and PXRD results. However, this enhancement in solubility found to be more significant when the SCF technology was used. This could be referred to the cosolvent impact of Soluplus®, as well the foaming effect that occurred for the sample while using this particular method. This could be related to the increase in the porosity and the surface area that occurred in the supercritical fluid samples (Charoenchaitrakool et al., 2000). In this experiment, the absorbance of Soluplus® at λmax = 237 nm was negligible.

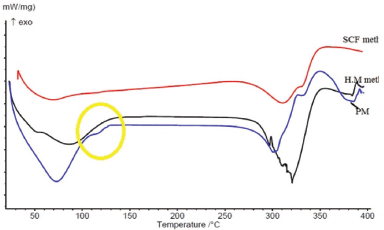

Figure 6. DSC of PM, solid dispersion of HM method and SCF method.

[Click here to view]

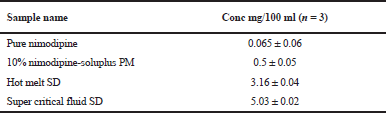

Table 1. Solubility of nimodipine, PM, hot melt SD, and SCF SD.



[Click here to view]

In vitro dissolution studies

Figure 7 shows the dissolution profiles of nimodipine. The results corresponded with the solubility data, as the solubility-improved, the dissolution rate increased as well. Pure nimodipine showed a cumulative release of approximately 16% within 2 hours and 17% for PM. At the same time, SDs exhibited higher cumulative release; 33% and 41% for the SDs which were prepared by HM and SCF methods, respectively. The increment could be attributed to the improved wettability and dispersibility, in addition to the complete conversion of Nimodipine to the amorphous form in the presence of Soluplus® (Homayouni et al., 2012). As a future study, the in vitro release results would be compared with the marketed formulation of nimodipine.


CONCLUSION

Soluplus® increased the solubility of nimodipine in the physical mixture, as well as the solid dispersions forms prepared either by conventional hot melt (HM) method or impregnation by SCF method. Saturation solubility study revealed the superior result obtained by SCF where the solubility was increased by 77-folds comparing to 48-folds increment by using the HM method. This increment was attributed to nimodipine-Soluplus® hydrogen bond interactions which were postulated using FTIR spectra of the solid dispersion. In addition to the amorphous transfer which was confirmed by DSC and PXRD. The use of Soluplus® with nimodipine to prepare solid dispersions found to be promising technique to enhance both nimodipine solubility and the dissolution profile. This enhancement was more pronounced in the dispersions prepared using the supercritical fluid technique. Future work should be designed to study such formulations through quality by design approach, in addition to performing accelerated stability studies for the selected formulations.

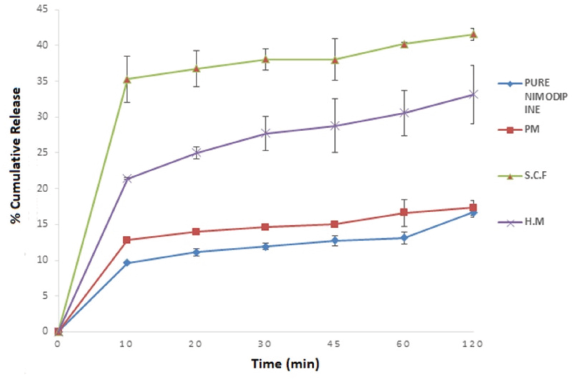

Figure 7. Dissolution profiles of pure nimodipine, PM, solid dispersions by HM and SCF at the dissolution tests were performed using USP apparatus (rotating paddle) with 50 rpm and 37°C using 900 ml of 0.5% sodium dodecyl sulfate in water (U.S. FDA method).

[Click here to view]


ACKNOWLEDGMENTS

The fund of this work is provided by Deanship of Research at Jordan University of Science and Technology (JUST) with Fund number (404/2017). The authors would like to thank them for providing research resources. The authors also grateful for Scientific Research Funds (SRF) that belonged to the Ministry of Higher Education (Amman, Jordan) since they are the working lab supplier with SFT unit (MPH/2/15/2013).


CONFLICTS OF INTEREST

There are no conflicts of interest.
