INTRODUCTION
Econazole nitrate (EC) is a broad-spectrum antimycotic imidazole derivative agent with fungistatic action and is widely used against Candida albicans (Ogata et al., 1983). According to the Biopharmaceutical Classification System, econazole nitrate is classified as a Class IV (low permeability, low solubility) drug (Amidon et al., 1995). It is very slightly soluble in water (1.48 μg/ml) but soluble in methanol (Suñer-Carbó et al., 2017). It has a partition coefficient (log P) of about 5.5 and a pKa of 6.6 (Remington, 2006; Stahl and Wermuth, 2002). One of the commercial topical dosage forms of EC is a cream containing 1% of EC. This cream provides neither a complete penetration of EC nor a long residence time of the formulation on the infected area (Ge et al., 2014). Most of the topical dermatological formulations such as creams and ointments have the disadvantages of a less spreading coefficient, sticky nature, and the need for rubbing during application. These limitations can be eliminated through a hydrogel formulation. Despite various advantages of hydrogels, they have a major limitation in the delivery of hydrophobic drugs. Thus, nanoemulsion (NE) combined with hydrogel has proved a boon in the delivery of hydrophobic drugs topically and provides the advantages of hydrogel formulation (Hoare and Kohane, 2008).
NE is a transparent isotropic, heterogeneous system of two immiscible liquids consisting of a fine dispersion of drugs in nanodroplets. It is stabilized by an interfacial layer of surfactant and co-surfactant (Sood et al., 2014). NEs are kinetically and thermodynamically stable systems lacking any coalescence or apparent flocculation upon storage and use within the period of the expiration date. NEs with nanodroplet size in the range of 20–400 nm, uniform droplet size distribution commonly have different biopharmaceutical properties comparing to the traditional emulsions type which have particle size higher than 500 nm (Ahmed et al., 2012; Shakeel et al., 2012; Sugumar et al., 2014). NEs show many advantages comparing to conventional emulsions, such as more stability, higher interfacial area, fast absorption by internalization into the enterocyte, enhancement of drug aqueous solubility, and consequently, expected improvement in bioavailability (Gorain et al., 2014). US Food and Drug Administration has approved a number of NEs in the past few years such as Norvir®, Neoral®, and Fortovase® (Zhao et al., 2013). The aim of this study was to control the delivery of econazole nitrate topically with fast and easy permeation through skin epidermis by incorporating the drug in an NE combined with hydrogel to provide more residence time of drug at the infected site with optimum skin penetration.
MATERIALS AND METHODS
Materials
Econazole nitrate was generously supplied by Furat pharmaceutical industries, Iraq. Peppermint oil was purchased from Bar-sur-Loup Grasse (a.m) France, eucalyptus oil and olive oil were purchased from Ati lab., Netherland. Tween 40 was purchased from Grin land chemical comp., UK. Brij 35 was purchased from Himedia Lab. Pvt Ltd, India. Cetostearyl alcohol was purchased from Fluca Chemie AG, Switzerland. All other chemicals were of analytical grade.
Methods
Differential scanning calorimetry
The sample of the drug was analyzed by differential scanning calorimetry (DSC) using a Mettler Toledo SR system. Three mg of each sample was placed into a pierced aluminum container. The study was performed under the static air atmosphere in the temperature range of 20°C–320°C at a heating rate of 10°C/minute. The peak temperature was determined.
HPLC analysis of econazole nitrate
To determine the drug content, the Reverse phase (RP)-high-pressure liquid chromatographic (HPLC) separation was performed on a Shimadzu liquid chromatographic system equipped with an LC pump, DGU-20A5 UV detector, and injector system fitted with 100 μl loop volume. The HPLC analysis was carried out at a flow rate of 2.0 ml/minute using a mobile phase composed of methanol-aqueous 0.05 M ammonium dihydrogen phosphate (85:15, v/v), and the UV-detector was set at 230 nm. The mobile phase was prepared daily, filtered through a 0.45 μm membrane filter (Millipore), and sonicated before use. A Thermo C18 column (100 mm × 4.6 mm id, 3.5 μ) was used for the separation.
The retention time of drug is 4.78 minutes, as shown in the chromatogram in Figure 1 and drug content was calculated from the calibration curve (y = 0.7354x + 0.00865) (Cavrini et al., 1982).
Determination of econazole nitrate solubility in NE components
Powder of EC was added in excess to different NE components which include oils (peppermint oil, eucalyptus oil, and olive oil), surfactants (Tween 40, Brij 35, and cetostearyl alcohol), and co-surfactants (propylene glycol, PEG 400, and glycerol). After shaking at 25°C for 24 hours, samples were centrifuged, and then the supernatant was separated and subjected to centrifugation at 3,000 rpm for 5 minutes to remove the undissolved drug. Samples of these solutions were then collected, and the drug concentration was determined using the HPLC method described here.
Construction of pseudo-ternary phase diagram
To find out the concentration of components that produce NEs, pseudo-ternary phase diagrams were constructed using water titration method at an ambient temperature (25°C). Peppermint oil was selected as the oil phase. Tween 40 and propylene glycol were selected as surfactant and co-surfactant, respectively. Deionized water was used as an aqueous phase. A phase diagram was prepared with a 5:1 weight ratio of tween 40 to propylene glycol.
Fourteen formulas of NE were prepared at different weight ratios, as shown in Table 1. The mixtures of oil, surfactant, and co-surfactant at certain weight ratios were diluted with water dropwise under moderate magnetic stirring. After being equilibrated, the mixtures were assessed visually to determine it is one phase NEs (Jadhav et al., 2015).

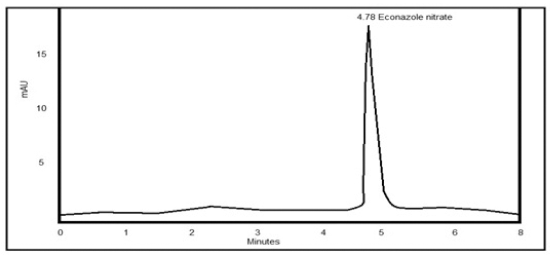

 | Figure 1. HPLC chromatogram of econazole nitrate. [Click here to view] |
Drug loading in the NE system
The loading procedure of 1% w/w EC into the selected NE system includes heating of all the system components, except water up to 40°C ± 5°C using a water bath. Then, the drug is added and the system is subjected to sonication for about 30 minutes at 40°C ± 5°C using a Copley Scientific sonicator 2200E, UK to ensure complete dissolving of the powder.
After ensuring a complete dissolving of all the molecules of the drug visually, the NE system is cooled down to about 30°C ± 5°C and then completed by adding the required weight of water up to 100 g.
Preparation of nanoemulsion-enriched hydrogel of Econazole nitrate
After loading of drug into the best-chosen nanoemulsion (EC NE), the hydrogel part preparation involves either Carbopol 934 or HPMC as a gelling agent in addition to methyl and propylparaben as a preservative, while propylene glycol as a co-solvent, as shown in Table 2.
The Carbopol 934 gel bases were prepared by dispersing Carbopol 934 in deionized water with a continuous stirring at a moderate speed using a mechanical shaker (Formulations G1, G2, and G3). The pH of all the formulations was adjusted to 6–6.5 using tri-ethanolamine (Ranga et al., 2012).
In formulations G4, G5, and G6, the gel was prepared by dispersing HPMC in hot distilled water (80°C) and the dispersion was cooled and left overnight.
Methyl and propylparaben were dissolved in propylene glycol and mixed with the aqueous phase. Both the NE and aqueous phases were heated to 70°C–80°C separately; then the NE was added to the aqueous phase with continuous stirring until the system temperature drops down to room temperature. The obtained NE was mixed with the hydrogel in 1:1 ratio with gentle stirring to obtain the NE-enriched hydrogel.
Determination of particle size of nanoemulsions
The particle size and polydispersity were determined for the prepared NE three times by the use of Angstrom nano laser particle size analyzer (Guttoff et al., 2015).
Determination of viscosity of nanoemulsions
The viscosities of the prepared NEs were determined using ProRheo Viscometer ProRheo, Bell technology Ltd, New Zealand spindle 01 at 50 rpm and room temperature (25°C) (Guttoff et al., 2015).

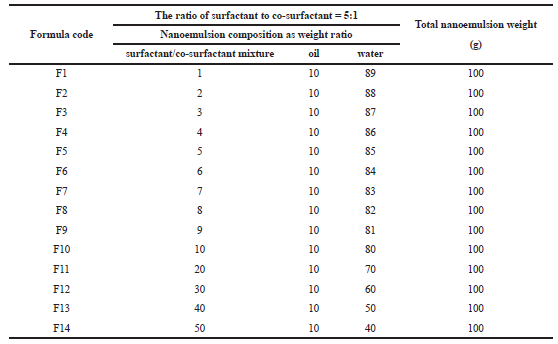

 | Table 1. Composition of econazole nitrate nanoemulsion. [Click here to view] |

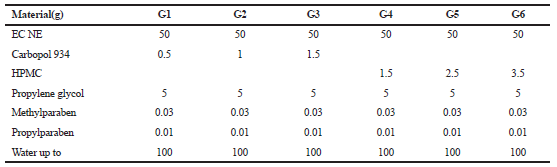

 | Table 2. Formulas of econazole nitrate nanoemulsion-enriched hydrogel. [Click here to view] |
Determination of pH of nanoemulsions
The pH values of the prepared NE samples were measured by a pH meter, Italy at room temperature, pH buffer solutions (4.01 ± 0.02 and 9.21 ± 0.02) were used to calibrate the instrument, and the measurements were carried out in triplicates (Guttoff et al., 2015).
Physical appearance of nanoemulsion-enriched hydrogel
The prepared hydrogel formulations were inspected visually for their color, homogeneity, consistency, grittiness, and phase separation.
pH of nanoemulsion-enriched hydrogel
One gram of the hydrogel formulation was dispersed in 10 ml of distilled water, and a digital pen pH meter was used to determine the pH value.
Viscosity of nanoemulsion-enriched hydrogel
The viscosities of all the prepared hydrogel formulas were measured using ProRheo Viscometer ProRheo, Bell technology Ltd, New Zealand spindle 02 and speed 50 rpm at 25°C, measurements were carried out in triplicate, and the average value was calculated (Baibhav et al., 2012).
Spreadability of nanoemulsion-enriched hydrogel
The apparatus suggested by Kumar and Verma (2010) was used to determine the spreadability. It consists of a wooden block, which is attached to a pulley at one end. Spreadability was measured on the basis of “Slip” and “Drag” characteristics of the hydrogel. A ground glass slide was fixed on the wooden block. An excess of hydrogel (about 1 g) under study was placed on this ground slide.
The hydrogel preparation was then sandwiched between this slide and second glass slide having the same dimension as that of the fixed ground slide. The second glass slide is provided with the hook.
A weight of 500 mg was placed on the top of the two slides for 5 minutes. The diameter of the produced circle was measured and used as comparative values for spreadability. It is calculated by using the following formula.
Spreadability = W. D/T
Where, W = wt. on the upper slide; D = diameter of spreading gel; and T = time until spreading stopped (Kumar and Verma, 2010).
Extrudability of nanoemulsion-enriched hydrogel
It is a common test to measure the force required to extrude the material from the tube. The extrudability test was carried out using 30 g of hydrogel filled in an aluminum tube. The plunger was adjusted to hold the tube properly. The force of 1 kg/cm2 was applied for 30 seconds. The quantity of gel extruded was weighed. The procedure was repeated at three equidistance places of the tube (Vikrant and Sonali, 2013).
Determination of drug content of nanoemulsion-enriched hydrogel
An accurately weighted portion from prepared NE-enriched hydrogel of econazole nitrate was dissolved in methanol, and this solution was filtered and the drug content was determined by RP-HPLC method.
In vitro drug release from nanoemulsion-enriched hydrogel
A sample of 1 g of the preparation was spread on a filter paper. The hydrogel-loaded membrane was firmly stretched over the edge of a glass tube of 2 cm diameter (opened at both ends). The membrane was tied up with a rubber. The tube was then immersed in the dissolution vessel, which contained 500 ml of the release medium, PBS pH 7.4, and maintained at 32°C ± 0.5°C. The medium was stirred at 50 rpm and 5-ml aliquots were withdrawn from the solution at specified time intervals. Equal volumes of fresh release medium were used to replace the withdrawn samples. The samples were assayed using the HPLC method mentioned previously. Each data point represents the average of three determinations. In vitro release studies were recorded for a period of 8 hours (Abdul Rasool et al., 2011).
RESULTS AND DISCUSSION
Differential scanning calorimetry
The results in Figure 2 obtained from DSC analysis showed an endothermic peak of EN at 165.32°C and exothermic peak at 199.32°C and these results similar to the published papers which indicate the purity of raw material (El et al., 2017).

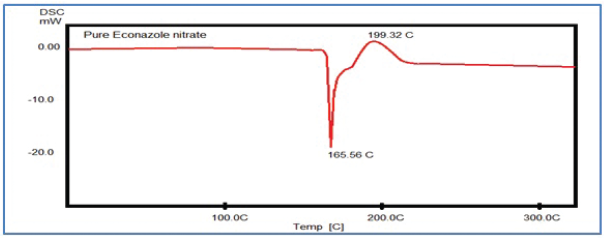

 | Figure 2. DSC thermogram of econazole nitrate. [Click here to view] |
Econazole nitrate solubility in NE components
The solubility EC in oil listed in Table 3 was in the following order; Peppermint oil > Eucalyptus oil > Olive oil, while the solubility in surfactant was in the following descending order; Tween 40 > Brij 35 > Cetostearyl alcohol. On the other hand, the solubility of EC in co-surfactant was in the following descending order; Propylene glycol > PEG 400 > Ethanol. So, suggested a system of NE is peppermint oil: Tween 40/propylene glycol: water with the 5:1 weight ratio of tween 40 to propylene glycol.
Pseudo-ternary phase diagram
The constructed pseudo-ternary phase diagram (Fig. 3) shows that formulas F10–F14 produce one phase NE and physical characteristics listed in Table 4. The droplet sizes for the formulations are represented in Table 4. The result shows that the droplet diameter and polydispersity index decrease with increasing surfactant mixture ratio in the system. These results are similar to that obtained by Saberi et al. (2013), and this may be due to the higher surfactant mixture concentration result in higher surfactant molecules at the interface and lower interfacial tension producing smaller droplet size. Tween 40 Hydrophilic-Lipophilic Balance (HLB = 15.6) is considered a good choice for preparation of NE since it is usually produced the smallest droplets size (Hasani et al., 2015). Average droplet size distribution of formulas produced NE ranged from 54.82 to 80.57 nm. Also, the results showed that the viscosity of NE increased without change in pH (5.65) as surfactant mixture concentration increases. Although formula F14 has the smallest droplet size, formula (F10) was chosen as an optimum formula for drug loading because of lowest viscosity and low surfactant mixture percentage gave nanodroplet size NE.

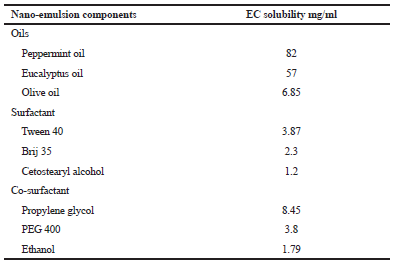

 | Table 3. Solubility of econazole nitrate in nanoemulsion components. [Click here to view] |
Evaluation of prepared nanoemulsion-enriched hydrogel of EC
The results in Table 5 of six prepared formulas (G1–G6) of the NE-enriched hydrogel of EC indicate no phase separation, acceptable drug content (99.60–98.70), and acceptable pH range of 5.82–6.52. The viscosity of product showed an increase as the gelling polymer percent increased. Formulas containing HPMC showed higher viscosities than carbopol containing formulas. The spreadability and extrudability of the product showed a decrease as the gelling polymer increased.
In vitro drug release
The release of drug from the prepared product (Fig. 4) shows an increase in the drug release retardation as carbopol or HPMC percentage increases although HPMC showed higher retardation effect on drug release than carbopol. The results indicated that formula G6 which contains 3.5% HPMC has an extended but complete drug release a period of 8 hours and can be considered as the best formula of NE-enriched hydrogel with good physical properties.

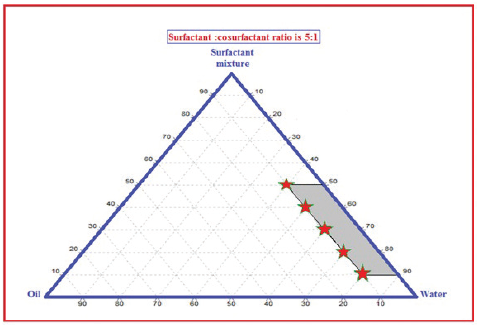

 | Figure 3. Pseudo-ternary phase diagram of peppermint oil: Tween 40/propylene glycol: water exploring the nanoemulsion region as marked points. [Click here to view] |

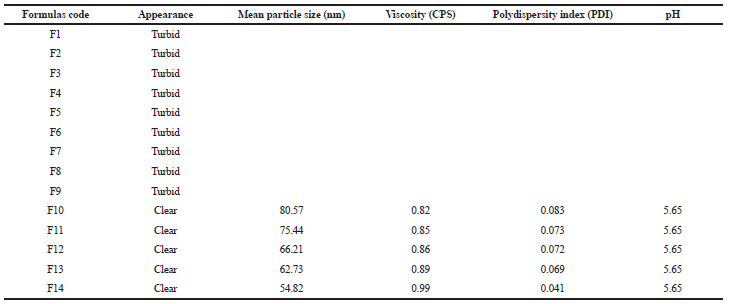

 | Table 4. Physical properties of the prepared systems which are composed of peppermint oil: Tween 40/propylene glycol: water. [Click here to view] |

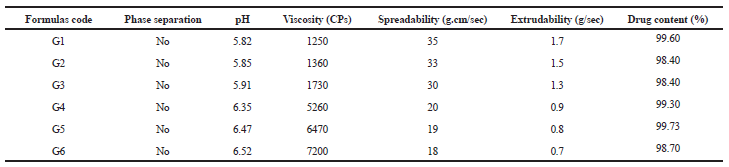

 | Table 5. Evaluation parameters of nanoemulsion-enriched hydrogel of EC. [Click here to view] |

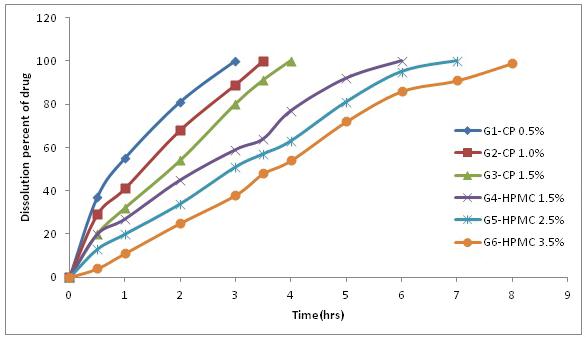

 | Figure 4. The dissolution profile of EC from NE-enriched with carbopol (G1–G3) or with HPMC (G4–G6). [Click here to view] |
CONCLUSION
Results of this study suggest that formula of nanosized topical product with the complete and extended release of poorly soluble antifungal drug can be prepared with expected higher penetration through the skin due to small particle size.
