In-silico study of flavonoids from Cassia tora as potential anti-psoriatic agent

Graphical user interface of the molecular operating environment (MOE) (Chemical Computing Group Inc., 2010) software was used to generate the three-dimensional molecular structures of the flavonoids and was energy minimized using molecular mechanics MMFF94 force field (Halgren, 1996) to an energy gradient of 0.001 kcal/mol. The 3D flavonoids were saved as in mol² format include into an MOE database (.mdb) file which is suitable for use in several virtual screening workflow protocols. The molar weight (MW), number of rotatable bonds (NRBs), lipophilicity (log P), hydrogen bond acceptor/donor (HBA/HBD), and Lipinski violations were calculated using the molecular descriptor calculator included in the QuSAR module of the MOE package.

Docking simulation

The crystal structures of the anti-psoriasis protein targets under review with their co-crystallized inhibitor were downloaded from protein data bank (Berman et al., 2000). The enzyme-inhibitor complexes were prepared according to standard for use in docking calculation (Ntie-Kang et al., 2014). For each complex, the co-crystallized water molecules and small non-essential molecules were removed. The protonate 3D procedure implemented in MOE was used to protonate the retained target-ligand complexes, after which they were energy minimized using the Gromacs 4.5.5 ffG53a6 (Scott et al., 1999). The protein targets and co-crystallized ligands were subsequently separated and saved separately.The docking of all the flavonoids toward the binding site of the 15 antipsoriatic targets was carried out using the MOE Dock tool. Three main stages were involved in the docking process: Conformational Analysis of ligands, Placement, and Scoring. In the ligand Conformational Analysis stage, conformations from a single 3D conformation input ligand were generated by conducting a systematic search methodology. All combinations of angles were created for each ligand. During the Placement stage, a collection of poses was generated from the pool of ligand confirmations using the Triangle Matcher placement method. Several poses were generated by superimposition of ligand atom triplets and triplet points in the receptor binding site. The receptor sites points are composed of alpha sphere centers, representing locations of tight packing. At each iteration, a random conformation was selected; a random triplet of ligand atoms and a random triplet of alpha sphere centers were used to determine the pose. At the Scoring stage, the poses generated during the Placement stage were scored using the London dG scoring method. The London dG scoring function estimates the free energy of binding of the ligand from a given rotational and translational entropy terms, energy lost as a result go the flexibility of the ligand, hydrogen bonding, metal contacts, and a desolvation term due to the volumes of the atoms of the protein and ligand in contact with the solvent. Docking validation was an attempt to identify the best docking parameters which reproduce the ligand conformation (docking poses) within the binding pocket, i.e., having the lowest root mean square deviation (RMSD) values with respect to the experimental binding mode (X-ray crystal structure). During the docking validation procedure, the native ligands present within the binding pocket of each of the protein complexes were docked toward their respective receptions sites using different grid parameters. The parameters retained with the lowest RMSD values were then used to carry out docking for the data set toward the binding site of the 15 anti-psoriatic drug targets.

Physicochemical properties of the flavonoids

Nowadays, assessment of the oral bioavailability profile of potential drug candidates at an early stage of drug discovery is done to maximize resources (Ibezim et al., 2015). Lipinski proposed a rule, now generally known as the “Lipinski rule of five (ro5)” which is often employed to investigate drug-likeness of drug candidates. He proposed that a compound has to have: less than five HBDs, less than 10 HBAs, a molecular weight of less than 500 Da, and a partition coefficient log P of less than 5, in order to be drug-like. Potential drug candidates which violate two or more of the rule could possess bioavailability problems. Therefore, the set of molecular descriptors used by Lipinski were calculated, as shown in Table 1. Twelve out of the fifteen dataset violated none of the Lipinski rule. It was observed that three compounds failed to comply by the rule by outshooting the number of HBA and HBD criteria. Subsequently, this drastically lowers they lipophilic profile. Therefore, the three compounds may have problems with permeating across the cell membrane layers (Darvas et al., 2002). Be that as it may, this lipophilicity feature could be an advantage given that psoriasis is a skin disease. Hence, the inability of the drugs to pass/absorb through the skin will increase its concentration at the required site of action (skin surface) when applied topically.

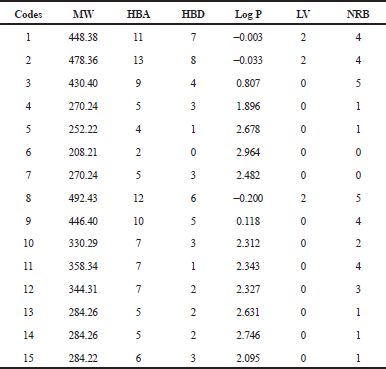

Table 1. Physicochemical parameters of the flavonoids from Cassia tora. [Click here to view]

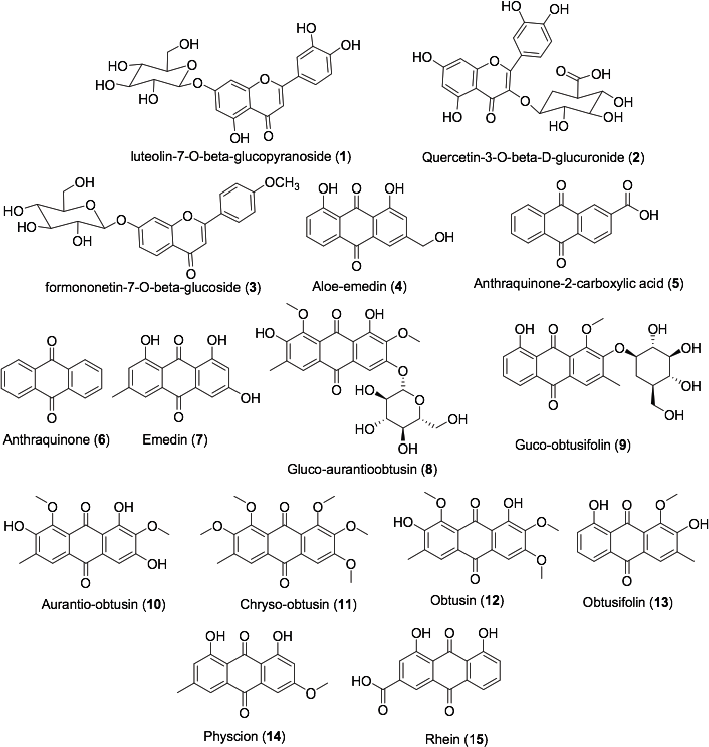

Figure 1. Two-dimensional chemical structures of flavonoids from Cassia tora (Kim et al., 2004; 2015; Shukla et al., 2018; Vijayalakshmi and Madhira, 2014). [Click here to view]

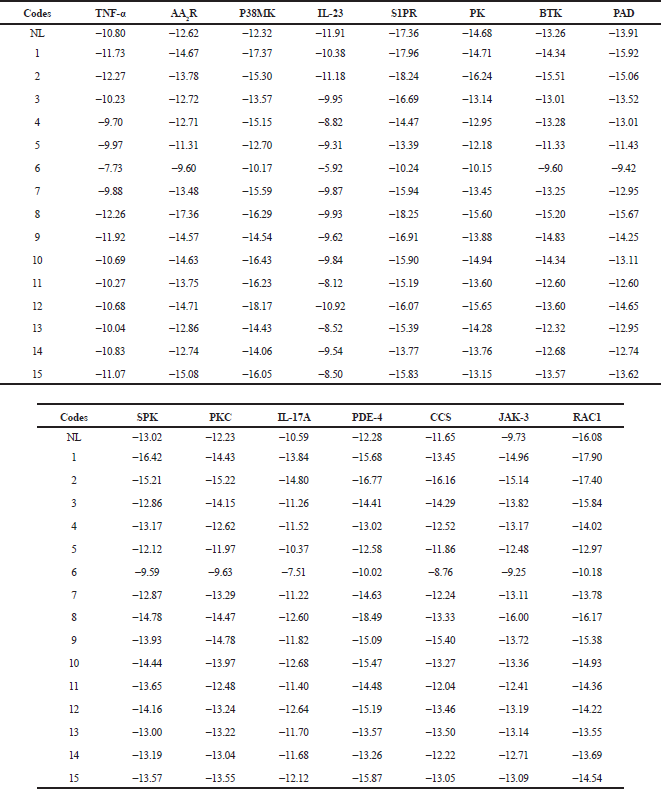

Table 2. Binding free energies of the 15 flavonoids toward the 15 anti-psoriatic protein targets. [Click here to view]

Docking calculations

The free binding energies of each of the studied flavonoids from Cassia tora towards 15 selected antipsoriatic drug targets and the number that bound to the proteins stronger than the co-crystallized ligands are shown in Table 2 and Figure 2, respectively. It was observed that all the flavonoids made varying degrees of favorable interactions with each of the protein targets. London dG scoring method identified that five compounds had a higher binding affinity toward tumor necrosis factor-α (TNF-α), Bruton’s tyrosine kinase (BTK), peptidyl arginine deiminases (PAD), and spleen protein kinase (SPK) than their native ligands. Twelve of the flavonoids made better interactions with AA₂R, PK, and protein kinase C (PKC) than their co-crystallized inhibitors, whereas all the compounds except 6 had lower free binding energy toward P38MK, interleukin (IL)-17A, phosphodiesterase-4 (PDE-4), cathepsin S (CCS), and Jak-3 than their native ligands. Only the docking scores of 1, 2, and 8 were lower than the reference ligands of S1PR and Rac1.

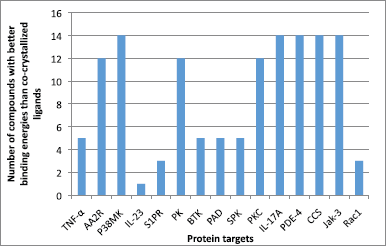

Figure 2. The distribution of the number of compounds with better binding energies toward the studied protein targets than the co-crystallized ligands. [Click here to view]

TNF-α (PDB—2AZ5); A₂AR (PDB—2YDO) adenosine receptor; p38MAPK (mitogen-activated protein kinase p38); IL-23 (PDB—3QWR) interleukin-23; SIPR (PDB—3V2W) sphingosine 1-phosphate receptor; BTK (PDB—4OTF) Bruton’s tyrosine kinase; PAD (PDB—4X8G) peptidyl arginine deiminases; SPK (PDB—4XG6) spleen protein kinase; PKC (PDB—5F9E) protein kinase C; IL-17A (PDB—5HI4) interleukin 17A; PDE-4 (PDB—5K1I) phosphodiesterase-4; CCS (PDB—5QC5) cathepsin S; JAK-3 (PDB—5TTS) Janus kinase; RAC-1 (PDB—5VCU) Ras-related c3 botulinum toxin substrate 1. NL represents native (co-crystallized) ligands which differ per protein target.

Moreover, it was noted that only two interacted with IL-23 with a binding affinity comparable to its native ligand. The docking score results of the studied flavonoids highlight the presence of a highly polar group (especially sugar) as a vital structural requirement for strong binding with the target proteins. Besides, the protein targets seem to form a complex with pyranone bearing molecules more favorably than the diones. The validity of the suggested structure-activity relationship is predicated on the observed reduction of binding affinity on replacing the two hydroxyl groups of 1 with hydrogen and methoxyl group (3). Furthermore, the improved polarity due to the presence of carboxylic acid group on C-6 of the sugar moiety of 2, accounts for its enhanced interaction with the protein targets over 1, 3, 8, and 9 (which also have sugar moiety). Again the relatively very weak binding interaction of 6, which contains the least number of polar groups, with the studied protein targets, goes to underscore the importance of lipophilic groups to binding with the protein targets (Figure 3). Worthy of note is the contribution that the possible pi-pi bonding existing between the aromatic rings of the flavonoids and the Phe28 has on the target-ligand formation and stability. The physicochemical features of the flavonoids from the plant are shown in Table 1 Lipinski rule proposed a molecule will be drug-like if it has MW of less than 500, the lipophilicity of less than 5, and hydrogen bond acceptor/donor of less than 10/5, respectively (Lipinski, 2000). None the less, the rule accommodates compounds that violate the maximum of two of the criteria. Therefore, all the studied flavonoids from Cassia tora are orally bioavailable and hence account for the ease of their absorption from the plant extract. Out of the flavonoids from Cassia tora, we consider 1, 2 and 8 as the candidates that worthy of further consideration, particularly because they bound more strongly to all the 15 studied antipsoriatic targets, except IL-23. Taken together, this study indicates that not only fatty acid but also flavonoid content of Cassia tora contributes to the antipsoriatic property of the plant. Therefore, scientists are encouraged to explore the flavonoid family in search for new and better antipsoriatic agents.

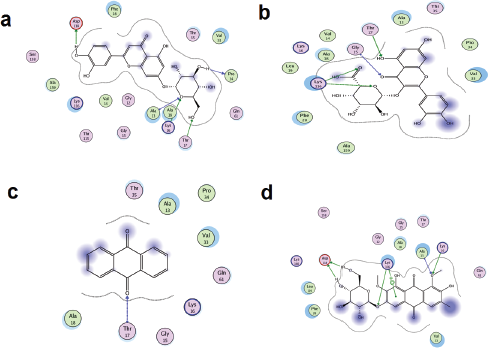

Figure 3. Binding interaction of 1 (a), 2 (b), 6 (c), and 8 (d) with the active site amino acid residues of Rac1. [Click here to view]
